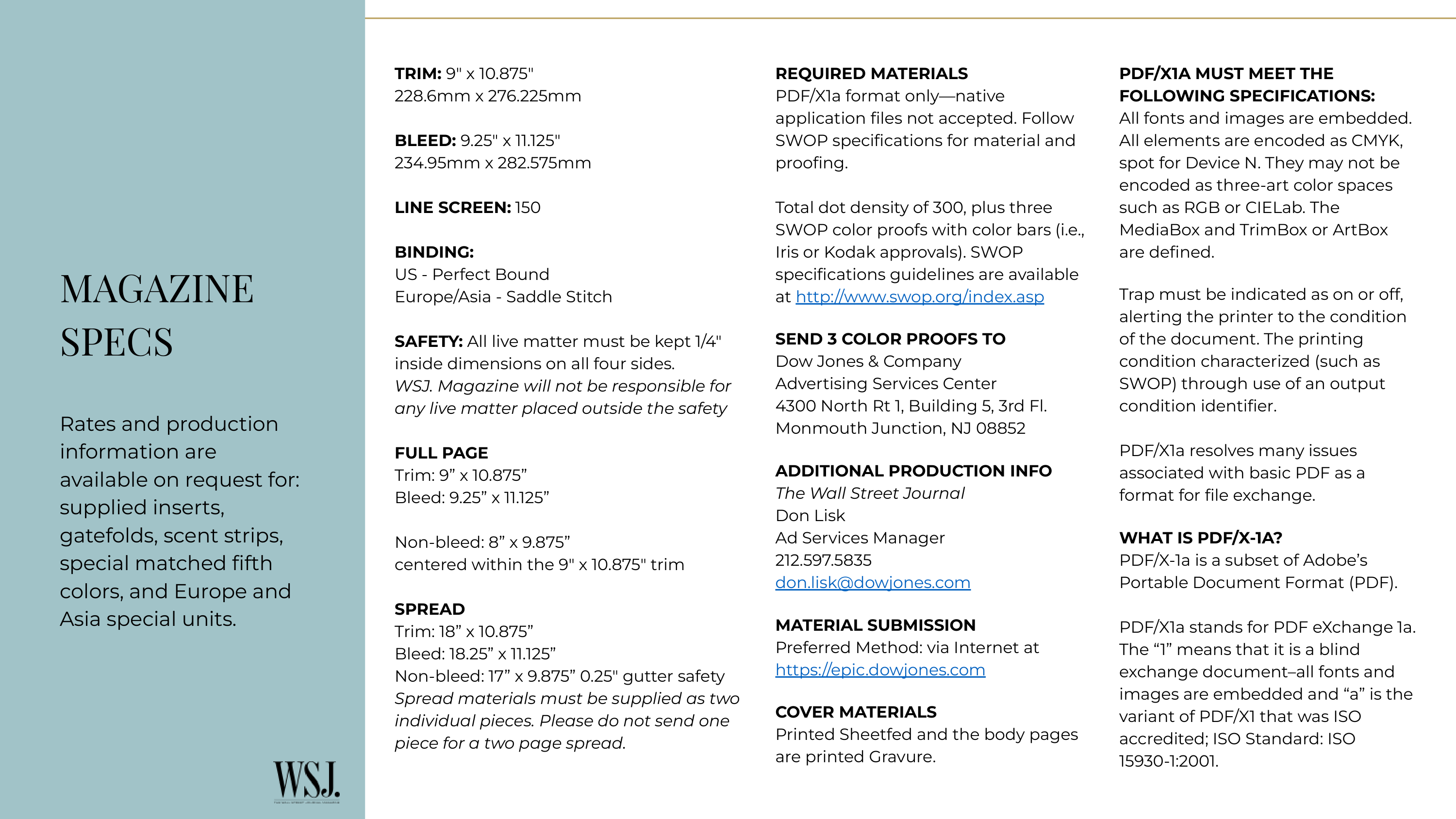

MAGAZINE
SPECS
Rates and production
information are
available on request for:
supplied inserts,
gatefolds, scent strips,
special matched fifth
colors, and Europe and
Asia special units.
TRIM:
9" x 10.875"
228.6mm x 276.225mm
BLEED:
9.25" x 11.125"
234.95mm x 282.575mm
LINE SCREEN:
150
BINDING:
US - Perfect Bound
Europe/Asia - Saddle Stitch
SAFETY:
All live matter must be kept 1/4"
inside dimensions on all four sides.
WSJ. Magazine will not be responsible for
any live matter placed outside the safety
FULL PAGE
Trim: 9” x 10.875”
Bleed: 9.25” x 11.125”
Non-bleed: 8” x 9.875”
centered within the 9" x 10.875" trim
SPREAD
Trim: 18” x 10.875”
Bleed: 18.25” x 11.125”
Non-bleed: 17” x 9.875” 0.25" gutter safety
Spread materials must be supplied as two
individual pieces. Please do not send one
piece for a two page spread.
REQUIRED MATERIALS
PDF/X1a format only—native
application files not accepted. Follow
SWOP specifications for material and
proofing.
Total dot density of 300, plus three
SWOP color proofs with color bars (i.e.,
Iris or Kodak approvals). SWOP
specifications guidelines are available
at
http://www.swop.org/index.asp
SEND 3 COLOR PROOFS TO
Dow Jones & Company
Advertising Services Center
4300 North Rt 1, Building 5, 3rd Fl.
Monmouth Junction, NJ 08852
ADDITIONAL PRODUCTION INFO
The Wall Street Journal
Don Lisk
Ad Services Manager
212.597.5835
don.lisk@dowjones.com
MATERIAL SUBMISSION
Preferred Method: via Internet at
https://epic.dowjones.com
COVER MATERIALS
Printed Sheetfed and the body pages
are printed Gravure.
PDF/X1A MUST MEET THE
FOLLOWING SPECIFICATIONS:
All fonts and images are embedded.
All elements are encoded as CMYK,
spot for Device N. They may not be
encoded as three-art color spaces
such as RGB or CIELab. The
MediaBox and TrimBox or ArtBox
are defined.
Trap must be indicated as on or off,
alerting the printer to the condition
of the document. The printing
condition characterized (such as
SWOP) through use of an output
condition identifier.
PDF/X1a resolves many issues
associated with basic PDF as a
format for file exchange.
WHAT IS PDF/X-1A?
PDF/X-1a is a subset of Adobe’s
Portable Document Format (PDF).
PDF/X1a stands for PDF eXchange 1a.
The “1” means that it is a blind
exchange document–all fonts and
images are embedded and “a” is the
variant of PDF/X1 that was ISO
accredited; ISO Standard: ISO
15930-1:2001.
