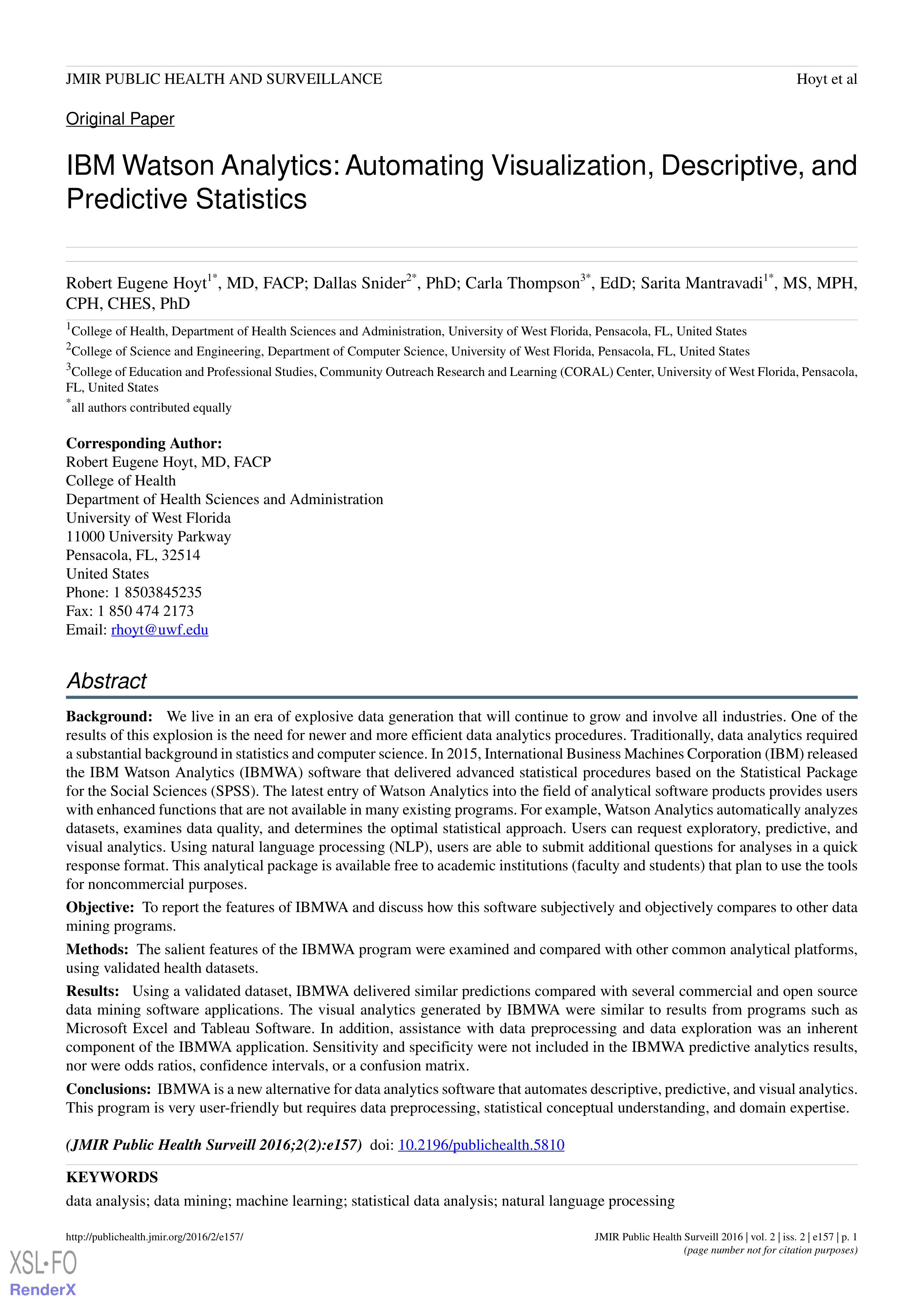

Original Paper
IBM Watson Analytics: Automating Visualization, Descriptive, and
Predictive Statistics
Robert Eugene Hoyt
1*
, MD, FACP; Dallas Snider
2*
, PhD; Carla Thompson
3*
, EdD; Sarita Mantravadi
1*
, MS, MPH,
CPH, CHES, PhD
1
College of Health, Department of Health Sciences and Administration, University of West Florida, Pensacola, FL, United States
2
College of Science and Engineering, Department of Computer Science, University of West Florida, Pensacola, FL, United States
3
College of Education and Professional Studies, Community Outreach Research and Learning (CORAL) Center, University of West Florida, Pensacola,
FL, United States
*
all authors contributed equally
Corresponding Author:
Robert Eugene Hoyt, MD, FACP
College of Health
Department of Health Sciences and Administration
University of West Florida
11000 University Parkway
Pensacola, FL, 32514
United States
Phone: 1 8503845235
Fax: 1 850 474 2173
Email:
rhoyt@uwf.edu
Abstract
Background:
We live in an era of explosive data generation that will continue to grow and involve all industries. One of the
results of this explosion is the need for newer and more efficient data analytics procedures. Traditionally, data analytics required
a substantial background in statistics and computer science. In 2015, International Business Machines Corporation (IBM) released
the IBM Watson Analytics (IBMWA) software that delivered advanced statistical procedures based on the Statistical Package
for the Social Sciences (SPSS). The latest entry of Watson Analytics into the field of analytical software products provides users
with enhanced functions that are not available in many existing programs. For example, Watson Analytics automatically analyzes
datasets, examines data quality, and determines the optimal statistical approach. Users can request exploratory, predictive, and
visual analytics. Using natural language processing (NLP), users are able to submit additional questions for analyses in a quick
response format. This analytical package is available free to academic institutions (faculty and students) that plan to use the tools
for noncommercial purposes.
Objective:
To report the features of IBMWA and discuss how this software subjectively and objectively compares to other data
mining programs.
Methods:
The salient features of the IBMWA program were examined and compared with other common analytical platforms,
using validated health datasets.
Results:
Using a validated dataset, IBMWA delivered similar predictions compared with several commercial and open source
data mining software applications. The visual analytics generated by IBMWA were similar to results from programs such as
Microsoft Excel and Tableau Software. In addition, assistance with data preprocessing and data exploration was an inherent
component of the IBMWA application. Sensitivity and specificity were not included in the IBMWA predictive analytics results,
nor were odds ratios, confidence intervals, or a confusion matrix.
Conclusions:
IBMWA is a new alternative for data analytics software that automates descriptive, predictive, and visual analytics.
This program is very user-friendly but requires data preprocessing, statistical conceptual understanding, and domain expertise.
(JMIR Public Health Surveill 2016;2(2):e157)
doi:
10.2196/publichealth.5810
KEYWORDS
data analysis; data mining; machine learning; statistical data analysis; natural language processing
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 1
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

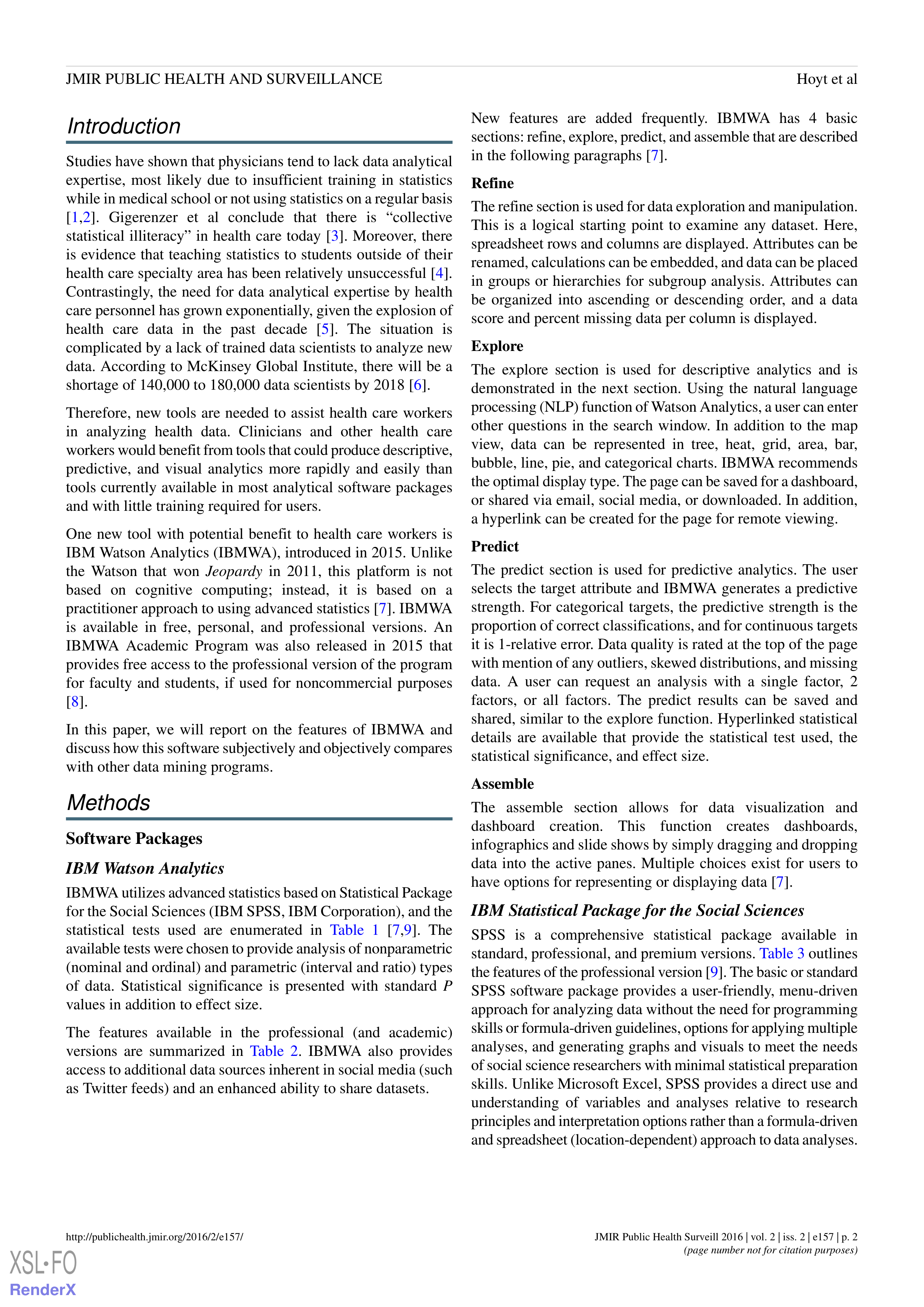

Introduction
Studies have shown that physicians tend to lack data analytical
expertise, most likely due to insufficient training in statistics
while in medical school or not using statistics on a regular basis
[
1
,
2
]. Gigerenzer et al conclude that there is “collective
statistical illiteracy” in health care today [
3
]. Moreover, there
is evidence that teaching statistics to students outside of their
health care specialty area has been relatively unsuccessful [
4
].
Contrastingly, the need for data analytical expertise by health
care personnel has grown exponentially, given the explosion of
health care data in the past decade [
5
]. The situation is
complicated by a lack of trained data scientists to analyze new
data. According to McKinsey Global Institute, there will be a
shortage of 140,000 to 180,000 data scientists by 2018 [
6
].
Therefore, new tools are needed to assist health care workers
in analyzing health data. Clinicians and other health care
workers would benefit from tools that could produce descriptive,
predictive, and visual analytics more rapidly and easily than
tools currently available in most analytical software packages
and with little training required for users.
One new tool with potential benefit to health care workers is
IBM Watson Analytics (IBMWA), introduced in 2015. Unlike
the Watson that won
Jeopardy
in 2011, this platform is not
based on cognitive computing; instead, it is based on a
practitioner approach to using advanced statistics [
7
]. IBMWA
is available in free, personal, and professional versions. An
IBMWA Academic Program was also released in 2015 that
provides free access to the professional version of the program
for faculty and students, if used for noncommercial purposes
[
8
].
In this paper, we will report on the features of IBMWA and
discuss how this software subjectively and objectively compares
with other data mining programs.
Methods
Software Packages
IBM Watson Analytics
IBMWA utilizes advanced statistics based on Statistical Package
for the Social Sciences (IBM SPSS, IBM Corporation), and the
statistical tests used are enumerated in
Table 1
[
7
,
9
]. The
available tests were chosen to provide analysis of nonparametric
(nominal and ordinal) and parametric (interval and ratio) types
of data. Statistical significance is presented with standard
P
values in addition to effect size.
The features available in the professional (and academic)
versions are summarized in
Table 2
. IBMWA also provides
access to additional data sources inherent in social media (such
as Twitter feeds) and an enhanced ability to share datasets.
New features are added frequently. IBMWA has 4 basic
sections: refine, explore, predict, and assemble that are described
in the following paragraphs [
7
].
Refine
The refine section is used for data exploration and manipulation.
This is a logical starting point to examine any dataset. Here,
spreadsheet rows and columns are displayed. Attributes can be
renamed, calculations can be embedded, and data can be placed
in groups or hierarchies for subgroup analysis. Attributes can
be organized into ascending or descending order, and a data
score and percent missing data per column is displayed.

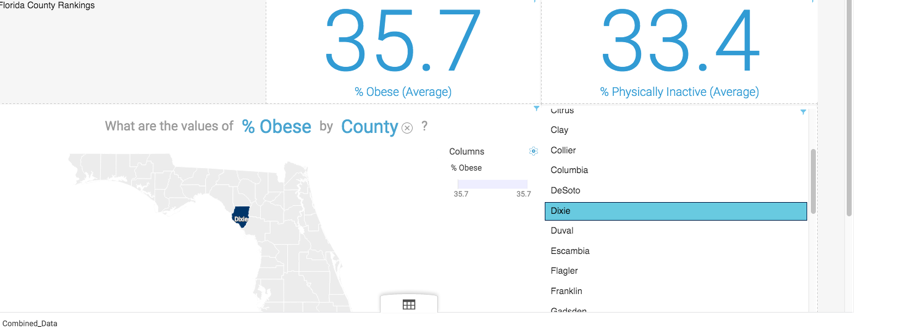

Explore
The explore section is used for descriptive analytics and is
demonstrated in the next section. Using the natural language
processing (NLP) function of Watson Analytics, a user can enter
other questions in the search window. In addition to the map
view, data can be represented in tree, heat, grid, area, bar,
bubble, line, pie, and categorical charts. IBMWA recommends
the optimal display type. The page can be saved for a dashboard,
or shared via email, social media, or downloaded. In addition,
a hyperlink can be created for the page for remote viewing.

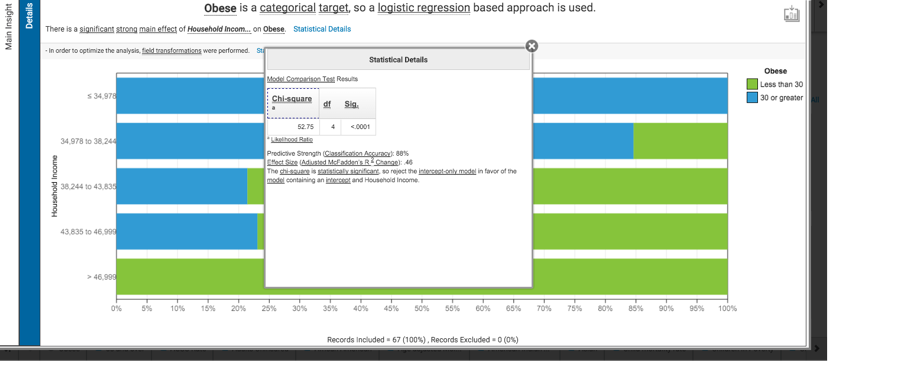

Predict
The predict section is used for predictive analytics. The user
selects the target attribute and IBMWA generates a predictive
strength. For categorical targets, the predictive strength is the
proportion of correct classifications, and for continuous targets
it is 1-relative error. Data quality is rated at the top of the page
with mention of any outliers, skewed distributions, and missing
data. A user can request an analysis with a single factor, 2
factors, or all factors. The predict results can be saved and
shared, similar to the explore function. Hyperlinked statistical
details are available that provide the statistical test used, the
statistical significance, and effect size.
Assemble
The assemble section allows for data visualization and
dashboard creation. This function creates dashboards,
infographics and slide shows by simply dragging and dropping
data into the active panes. Multiple choices exist for users to
have options for representing or displaying data [
7
].
IBM Statistical Package for the Social Sciences
SPSS is a comprehensive statistical package available in
standard, professional, and premium versions.
Table 3
outlines
the features of the professional version [
9
]. The basic or standard
SPSS software package provides a user-friendly, menu-driven
approach for analyzing data without the need for programming
skills or formula-driven guidelines, options for applying multiple
analyses, and generating graphs and visuals to meet the needs
of social science researchers with minimal statistical preparation
skills. Unlike Microsoft Excel, SPSS provides a direct use and
understanding of variables and analyses relative to research
principles and interpretation options rather than a formula-driven
and spreadsheet (location-dependent) approach to data analyses.
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 2
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

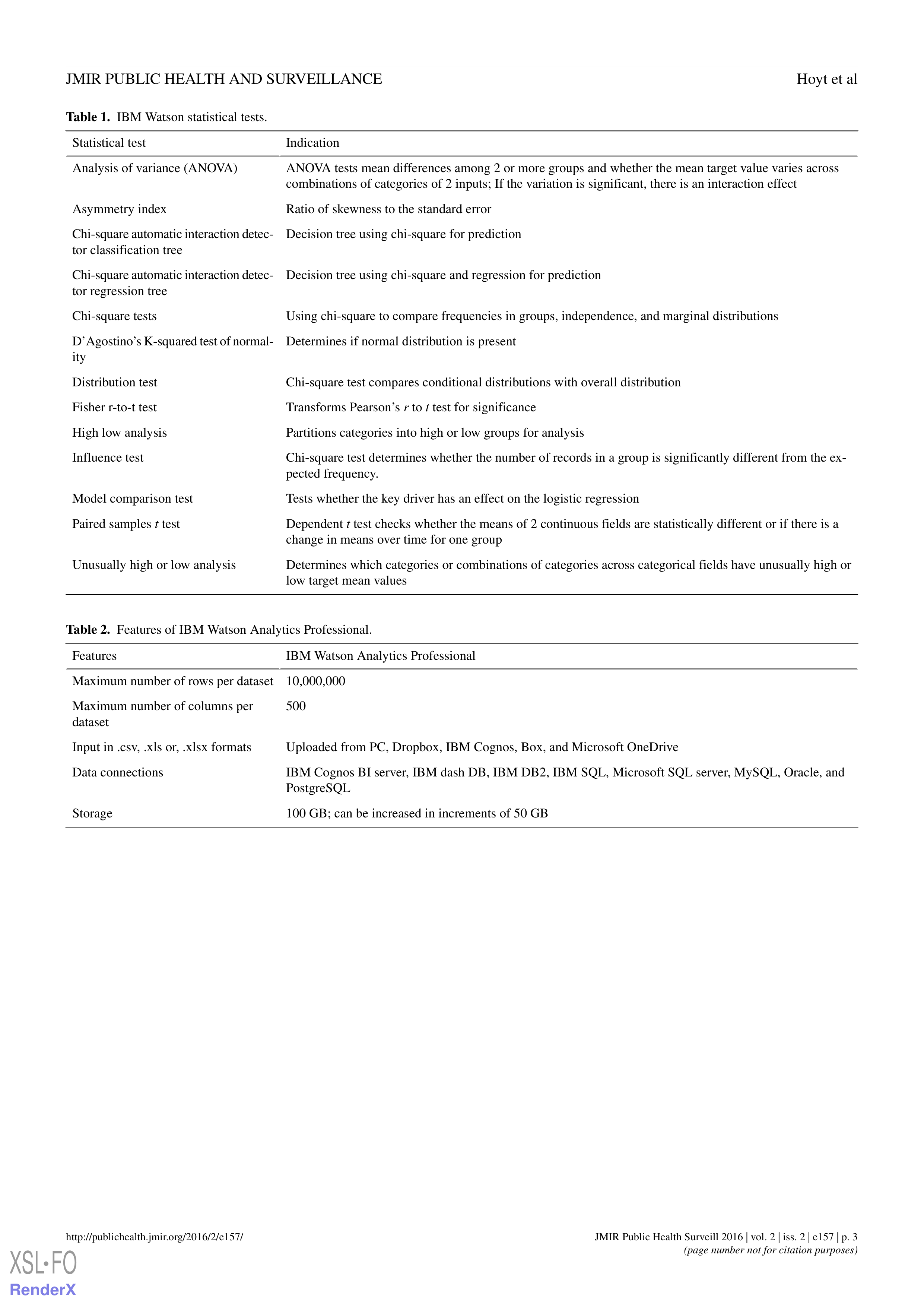

Table 1.
IBM Watson statistical tests.
Indication
Statistical test
ANOVA tests mean differences among 2 or more groups and whether the mean target value varies across
combinations of categories of 2 inputs; If the variation is significant, there is an interaction effect
Analysis of variance (ANOVA)
Ratio of skewness to the standard error
Asymmetry index
Decision tree using chi-square for prediction
Chi-square automatic interaction detec-
tor classification tree
Decision tree using chi-square and regression for prediction
Chi-square automatic interaction detec-
tor regression tree
Using chi-square to compare frequencies in groups, independence, and marginal distributions
Chi-square tests
Determines if normal distribution is present
D’Agostino’s K-squared test of normal-
ity
Chi-square test compares conditional distributions with overall distribution
Distribution test
Transforms Pearson’s
r
to
t
test for significance
Fisher r-to-t test
Partitions categories into high or low groups for analysis
High low analysis
Chi-square test determines whether the number of records in a group is significantly different from the ex-
pected frequency.
Influence test
Tests whether the key driver has an effect on the logistic regression
Model comparison test
Dependent
t
test checks whether the means of 2 continuous fields are statistically different or if there is a
change in means over time for one group
Paired samples
t
test
Determines which categories or combinations of categories across categorical fields have unusually high or
low target mean values
Unusually high or low analysis
Table 2.
Features of IBM Watson Analytics Professional.
IBM Watson Analytics Professional
Features
10,000,000
Maximum number of rows per dataset
500
Maximum number of columns per
dataset
Uploaded from PC, Dropbox, IBM Cognos, Box, and Microsoft OneDrive
Input in .csv, .xls or, .xlsx formats
IBM Cognos BI server, IBM dash DB, IBM DB2, IBM SQL, Microsoft SQL server, MySQL, Oracle, and
PostgreSQL
Data connections
100 GB; can be increased in increments of 50 GB
Storage
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 3
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

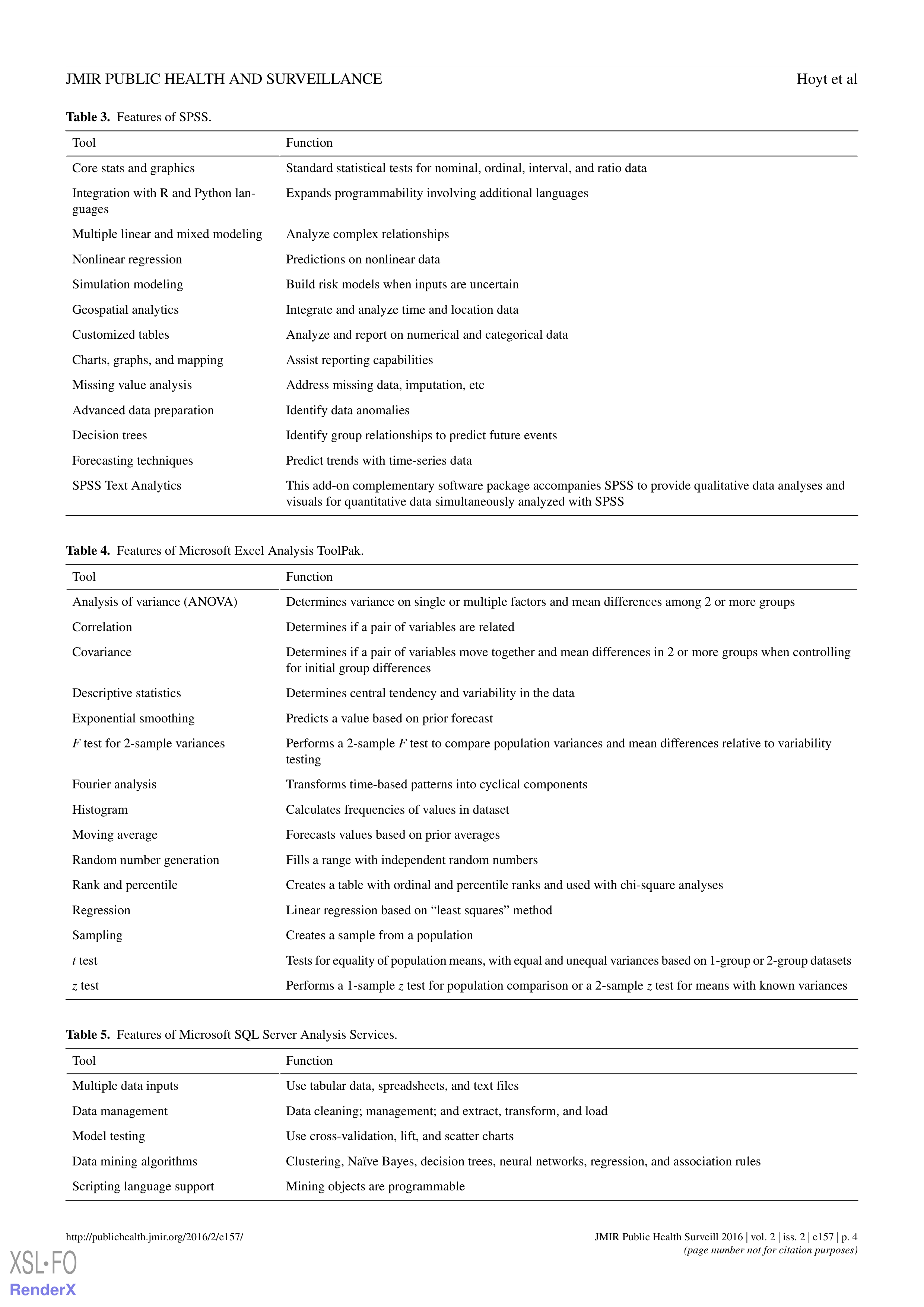

Table 3.
Features of SPSS.
Function
Tool
Standard statistical tests for nominal, ordinal, interval, and ratio data
Core stats and graphics
Expands programmability involving additional languages
Integration with R and Python lan-
guages
Analyze complex relationships
Multiple linear and mixed modeling
Predictions on nonlinear data
Nonlinear regression
Build risk models when inputs are uncertain
Simulation modeling
Integrate and analyze time and location data
Geospatial analytics
Analyze and report on numerical and categorical data
Customized tables
Assist reporting capabilities
Charts, graphs, and mapping
Address missing data, imputation, etc
Missing value analysis
Identify data anomalies
Advanced data preparation
Identify group relationships to predict future events
Decision trees
Predict trends with time-series data
Forecasting techniques
This add-on complementary software package accompanies SPSS to provide qualitative data analyses and
visuals for quantitative data simultaneously analyzed with SPSS
SPSS Text Analytics
Table 4.
Features of Microsoft Excel Analysis ToolPak.
Function
Tool
Determines variance on single or multiple factors and mean differences among 2 or more groups
Analysis of variance (ANOVA)
Determines if a pair of variables are related
Correlation
Determines if a pair of variables move together and mean differences in 2 or more groups when controlling
for initial group differences
Covariance
Determines central tendency and variability in the data
Descriptive statistics
Predicts a value based on prior forecast
Exponential smoothing
Performs a 2-sample
F
test to compare population variances and mean differences relative to variability
testing
F
test for 2-sample variances
Transforms time-based patterns into cyclical components
Fourier analysis
Calculates frequencies of values in dataset
Histogram
Forecasts values based on prior averages
Moving average
Fills a range with independent random numbers
Random number generation
Creates a table with ordinal and percentile ranks and used with chi-square analyses
Rank and percentile
Linear regression based on “least squares” method
Regression
Creates a sample from a population
Sampling
Tests for equality of population means, with equal and unequal variances based on 1-group or 2-group datasets
t
test
Performs a 1-sample
z
test for population comparison or a 2-sample
z
test for means with known variances
z
test
Table 5.
Features of Microsoft SQL Server Analysis Services.
Function
Tool
Use tabular data, spreadsheets, and text files
Multiple data inputs
Data cleaning; management; and extract, transform, and load
Data management
Use cross-validation, lift, and scatter charts
Model testing
Clustering, Naïve Bayes, decision trees, neural networks, regression, and association rules
Data mining algorithms
Mining objects are programmable
Scripting language support
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 4
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

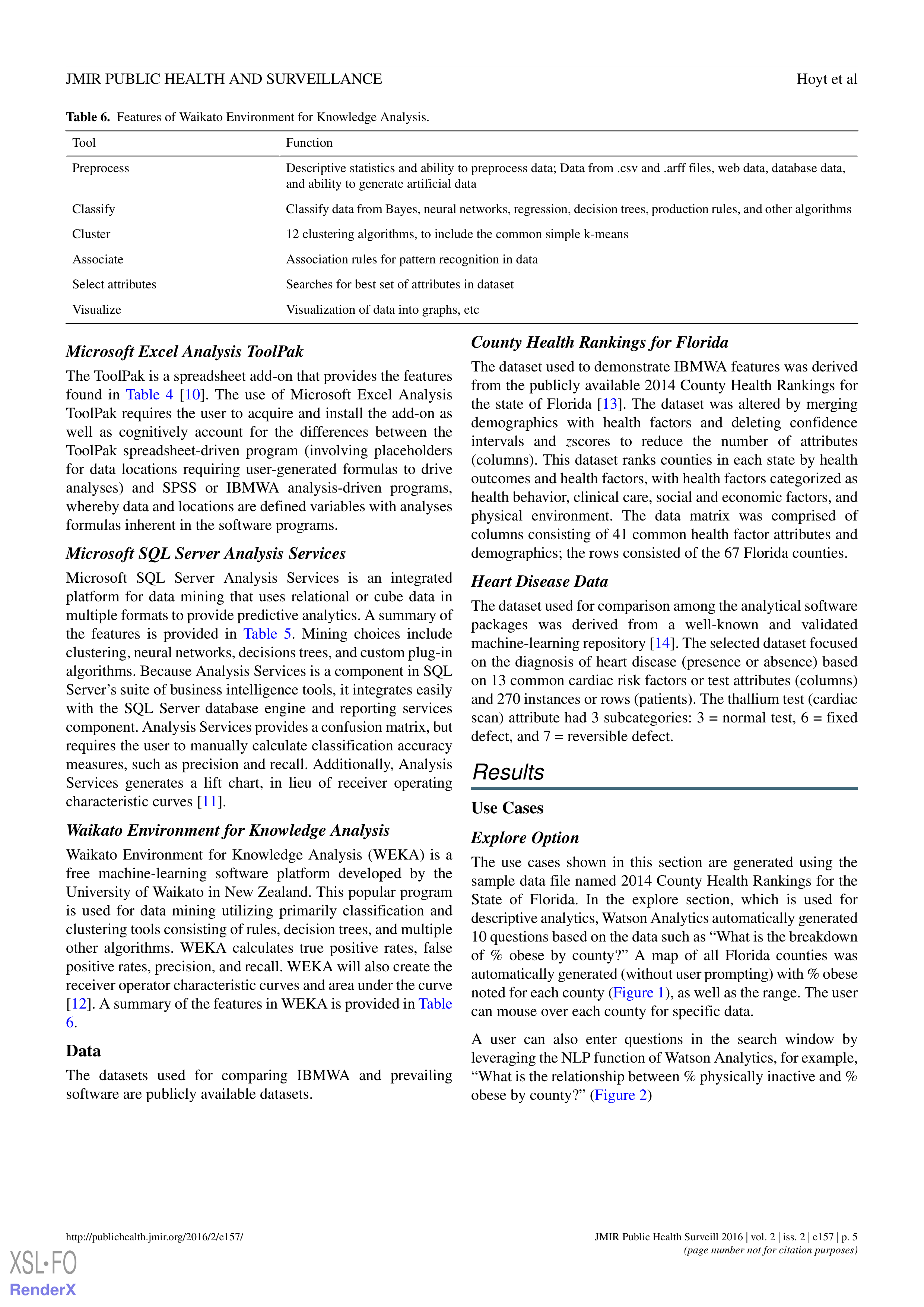

Table 6.
Features of Waikato Environment for Knowledge Analysis.
Function
Tool
Descriptive statistics and ability to preprocess data; Data from .csv and .arff files, web data, database data,
and ability to generate artificial data
Preprocess
Classify data from Bayes, neural networks, regression, decision trees, production rules, and other algorithms
Classify
12 clustering algorithms, to include the common simple k-means
Cluster
Association rules for pattern recognition in data
Associate
Searches for best set of attributes in dataset
Select attributes
Visualization of data into graphs, etc
Visualize
Microsoft Excel Analysis ToolPak
The ToolPak is a spreadsheet add-on that provides the features
found in
Table 4
[
10
]. The use of Microsoft Excel Analysis
ToolPak requires the user to acquire and install the add-on as
well as cognitively account for the differences between the
ToolPak spreadsheet-driven program (involving placeholders
for data locations requiring user-generated formulas to drive
analyses) and SPSS or IBMWA analysis-driven programs,
whereby data and locations are defined variables with analyses
formulas inherent in the software programs.
Microsoft SQL Server Analysis Services
Microsoft SQL Server Analysis Services is an integrated
platform for data mining that uses relational or cube data in
multiple formats to provide predictive analytics. A summary of
the features is provided in
Table 5
. Mining choices include
clustering, neural networks, decisions trees, and custom plug-in
algorithms. Because Analysis Services is a component in SQL
Server’s suite of business intelligence tools, it integrates easily
with the SQL Server database engine and reporting services
component. Analysis Services provides a confusion matrix, but
requires the user to manually calculate classification accuracy
measures, such as precision and recall. Additionally, Analysis
Services generates a lift chart, in lieu of receiver operating
characteristic curves [
11
].
Waikato Environment for Knowledge Analysis
Waikato Environment for Knowledge Analysis (WEKA) is a
free machine-learning software platform developed by the
University of Waikato in New Zealand. This popular program
is used for data mining utilizing primarily classification and
clustering tools consisting of rules, decision trees, and multiple
other algorithms. WEKA calculates true positive rates, false
positive rates, precision, and recall. WEKA will also create the
receiver operator characteristic curves and area under the curve
[
12
]. A summary of the features in WEKA is provided in
Table
6
.
Data
The datasets used for comparing IBMWA and prevailing
software are publicly available datasets.
County Health Rankings for Florida
The dataset used to demonstrate IBMWA features was derived
from the publicly available 2014 County Health Rankings for
the state of Florida [
13
]. The dataset was altered by merging
demographics with health factors and deleting confidence
intervals and
z
scores to reduce the number of attributes
(columns). This dataset ranks counties in each state by health
outcomes and health factors, with health factors categorized as
health behavior, clinical care, social and economic factors, and
physical environment. The data matrix was comprised of
columns consisting of 41 common health factor attributes and
demographics; the rows consisted of the 67 Florida counties.
Heart Disease Data
The dataset used for comparison among the analytical software
packages was derived from a well-known and validated
machine-learning repository [
14
]. The selected dataset focused
on the diagnosis of heart disease (presence or absence) based
on 13 common cardiac risk factors or test attributes (columns)
and 270 instances or rows (patients). The thallium test (cardiac
scan) attribute had 3 subcategories: 3 = normal test, 6 = fixed
defect, and 7 = reversible defect.
Results
Use Cases
Explore Option
The use cases shown in this section are generated using the
sample data file named 2014 County Health Rankings for the
State of Florida. In the explore section, which is used for
descriptive analytics, Watson Analytics automatically generated
10 questions based on the data such as “What is the breakdown
of % obese by county?” A map of all Florida counties was
automatically generated (without user prompting) with % obese
noted for each county (
Figure 1
), as well as the range. The user
can mouse over each county for specific data.
A user can also enter questions in the search window by
leveraging the NLP function of Watson Analytics, for example,
“What is the relationship between % physically inactive and %
obese by county?” (
Figure 2
)
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 5
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

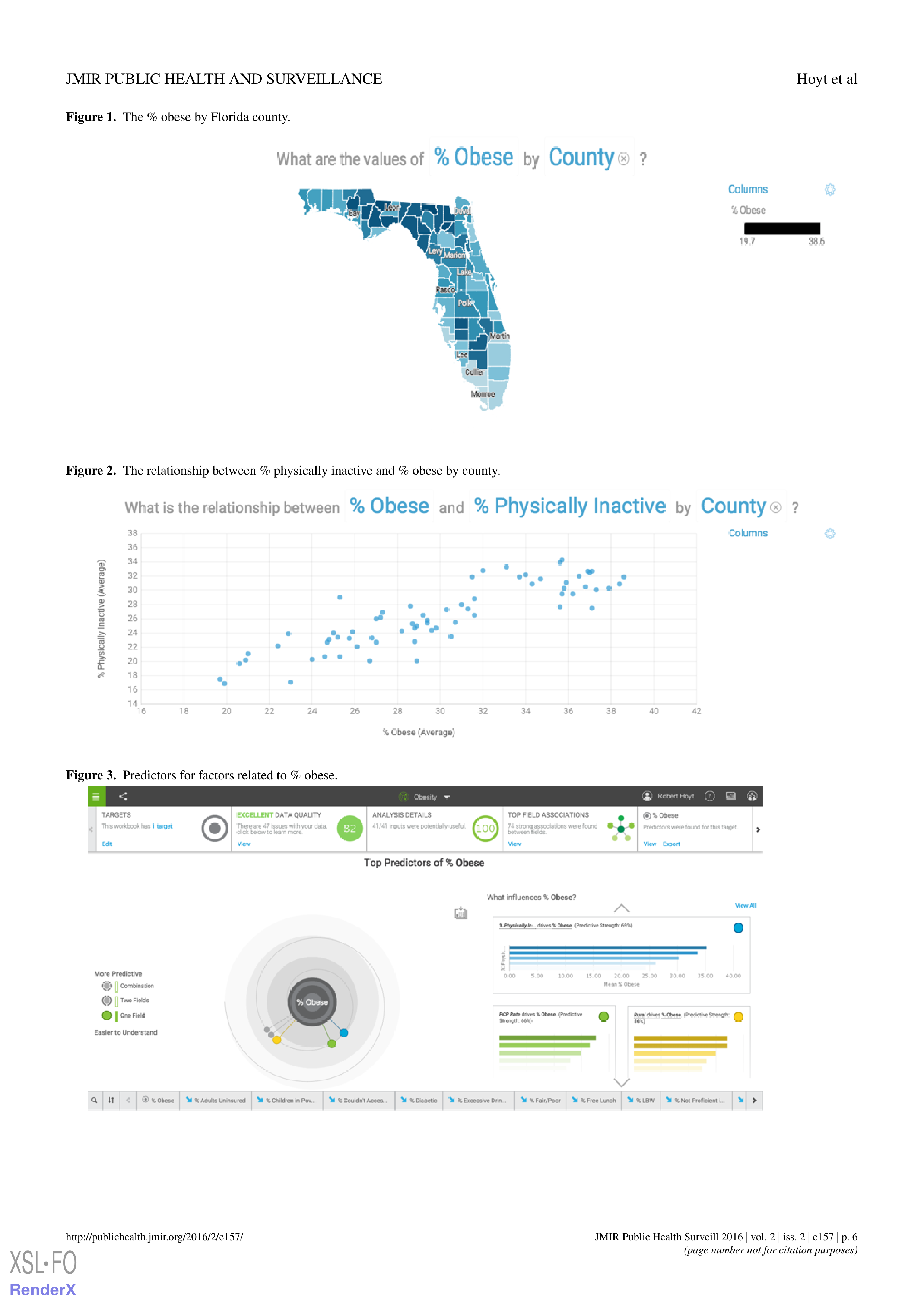

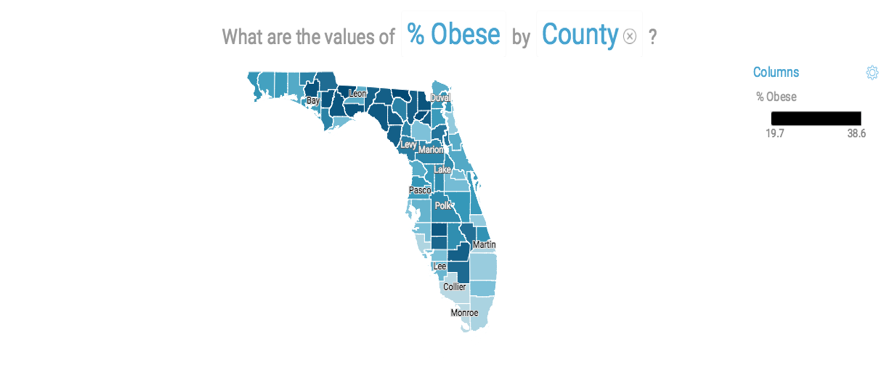

Figure 1.
The % obese by Florida county.
Figure 2.

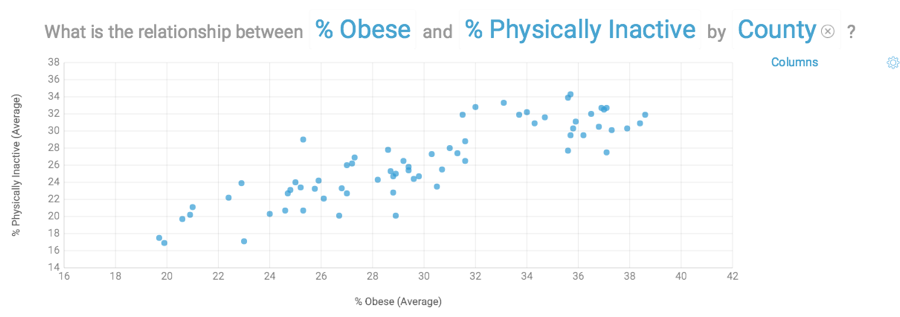

The relationship between % physically inactive and % obese by county.
Figure 3.

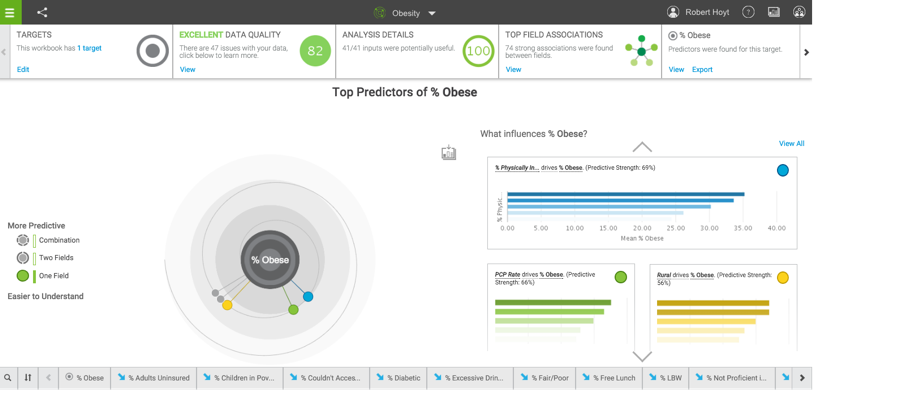

Predictors for factors related to % obese.
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 6
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

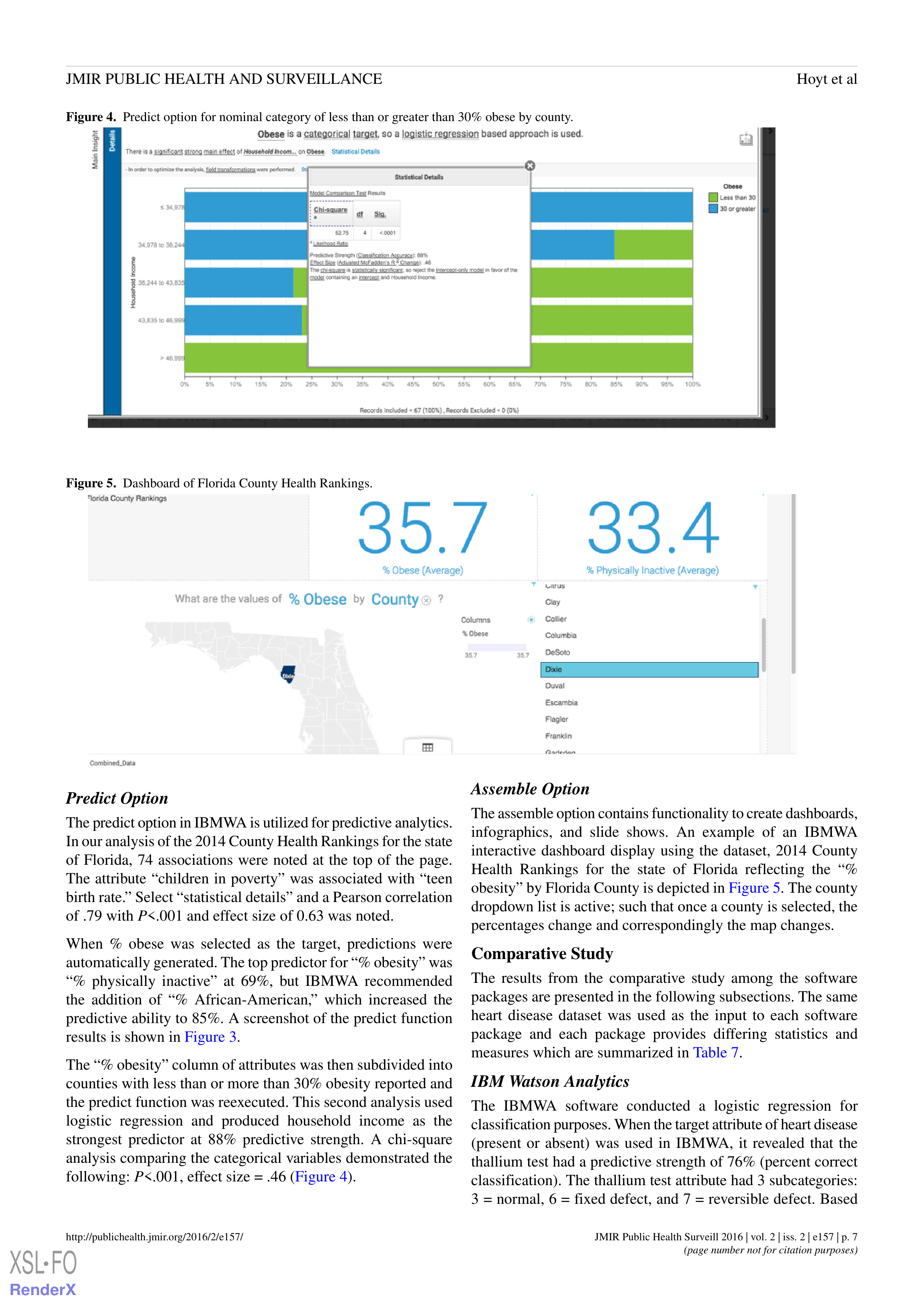

Figure 4.
Predict option for nominal category of less than or greater than 30% obese by county.
Figure 5.
Dashboard of Florida County Health Rankings.
Predict Option
The predict option in IBMWA is utilized for predictive analytics.
In our analysis of the 2014 County Health Rankings for the state
of Florida, 74 associations were noted at the top of the page.
The attribute “children in poverty” was associated with “teen
birth rate.” Select “statistical details” and a Pearson correlation
of .79 with
P
<.001 and effect size of 0.63 was noted.
When % obese was selected as the target, predictions were
automatically generated. The top predictor for “% obesity” was
“% physically inactive” at 69%, but IBMWA recommended
the addition of “% African-American,” which increased the
predictive ability to 85%. A screenshot of the predict function
results is shown in
Figure 3
.
The “% obesity” column of attributes was then subdivided into
counties with less than or more than 30% obesity reported and
the predict function was reexecuted. This second analysis used
logistic regression and produced household income as the
strongest predictor at 88% predictive strength. A chi-square
analysis comparing the categorical variables demonstrated the
following:
P
<.001, effect size = .46 (
Figure 4
).
Assemble Option
The assemble option contains functionality to create dashboards,
infographics, and slide shows. An example of an IBMWA
interactive dashboard display using the dataset, 2014 County
Health Rankings for the state of Florida reflecting the “%
obesity” by Florida County is depicted in
Figure 5
. The county
dropdown list is active; such that once a county is selected, the
percentages change and correspondingly the map changes.
Comparative Study
The results from the comparative study among the software
packages are presented in the following subsections. The same
heart disease dataset was used as the input to each software
package and each package provides differing statistics and
measures which are summarized in

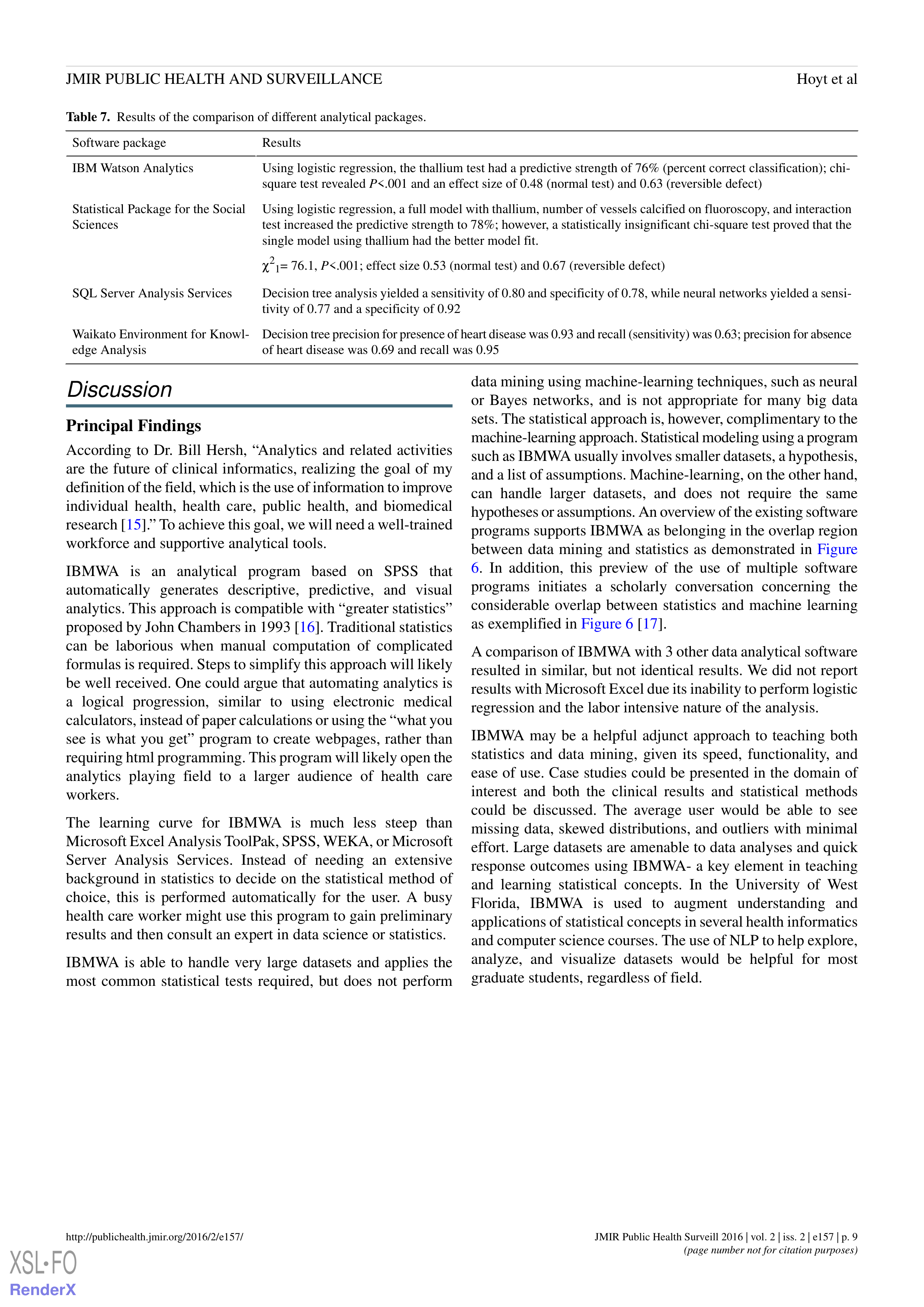

Table 7
.
IBM Watson Analytics
The IBMWA software conducted a logistic regression for
classification purposes. When the target attribute of heart disease
(present or absent) was used in IBMWA, it revealed that the
thallium test had a predictive strength of 76% (percent correct
classification). The thallium test attribute had 3 subcategories:
3 = normal, 6 = fixed defect, and 7 = reversible defect. Based
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 7
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

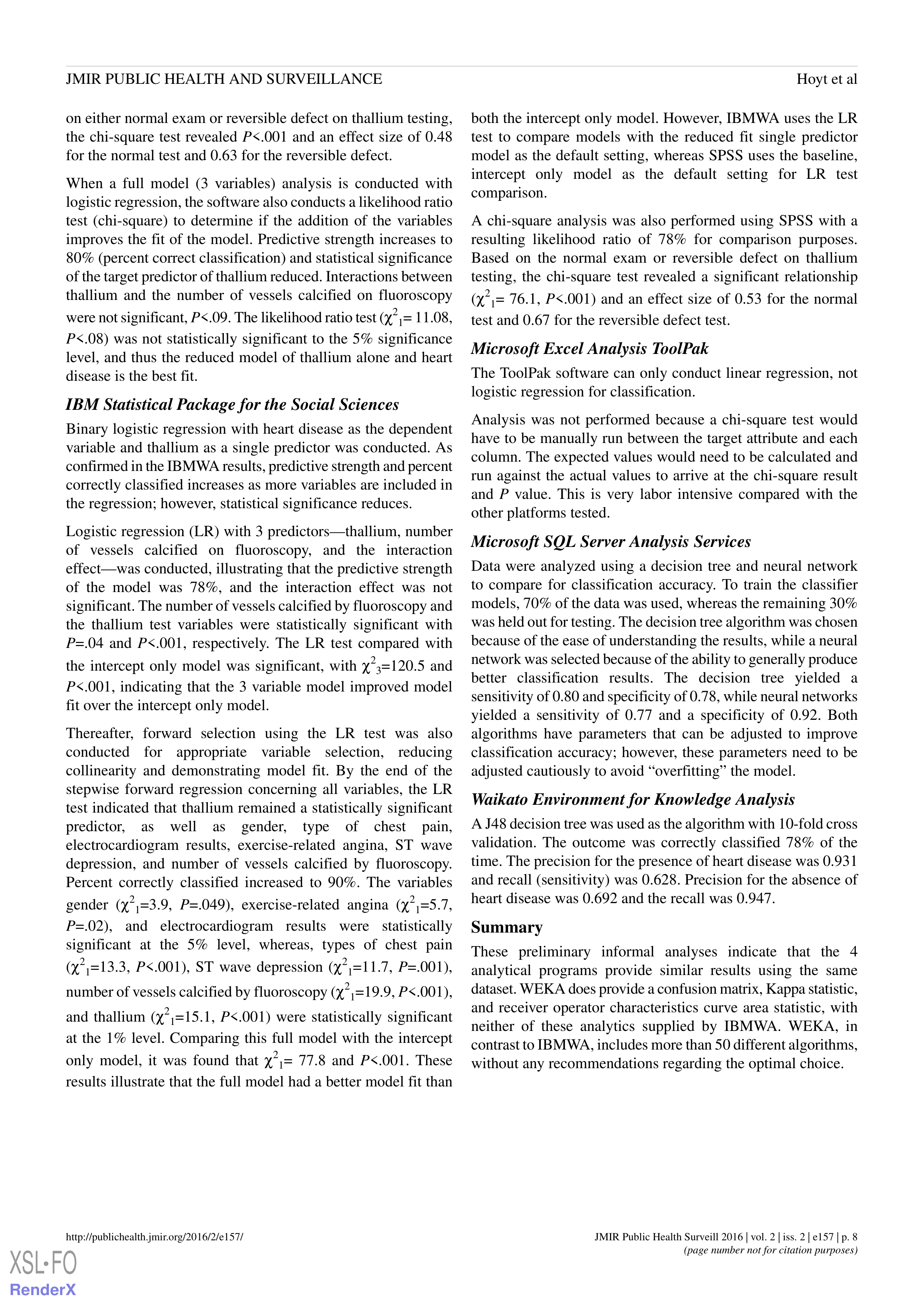

on either normal exam or reversible defect on thallium testing,
the chi-square test revealed
P
<.001 and an effect size of 0.48
for the normal test and 0.63 for the reversible defect.
When a full model (3 variables) analysis is conducted with
logistic regression, the software also conducts a likelihood ratio
test (chi-square) to determine if the addition of the variables
improves the fit of the model. Predictive strength increases to
80% (percent correct classification) and statistical significance
of the target predictor of thallium reduced. Interactions between
thallium and the number of vessels calcified on fluoroscopy
were not significant,
P
<.09. The likelihood ratio test (
χ
2
1
= 11.08,
P
<.08) was not statistically significant to the 5% significance
level, and thus the reduced model of thallium alone and heart
disease is the best fit.
IBM Statistical Package for the Social Sciences
Binary logistic regression with heart disease as the dependent
variable and thallium as a single predictor was conducted. As
confirmed in the IBMWA results, predictive strength and percent
correctly classified increases as more variables are included in
the regression; however, statistical significance reduces.
Logistic regression (LR) with 3 predictors—thallium, number
of vessels calcified on fluoroscopy, and the interaction
effect—was conducted, illustrating that the predictive strength
of the model was 78%, and the interaction effect was not
significant. The number of vessels calcified by fluoroscopy and
the thallium test variables were statistically significant with
P
=.04 and
P
<.001, respectively. The LR test compared with
the intercept only model was significant, with
χ
2
3
=120.5 and
P
<.001, indicating that the 3 variable model improved model
fit over the intercept only model.
Thereafter, forward selection using the LR test was also
conducted for appropriate variable selection, reducing
collinearity and demonstrating model fit. By the end of the
stepwise forward regression concerning all variables, the LR
test indicated that thallium remained a statistically significant
predictor, as well as gender, type of chest pain,
electrocardiogram results, exercise-related angina, ST wave
depression, and number of vessels calcified by fluoroscopy.
Percent correctly classified increased to 90%. The variables
gender (
χ
2
1
=3.9,
P
=.049), exercise-related angina (
χ
2
1
=5.7,
P
=.02), and electrocardiogram results were statistically
significant at the 5% level, whereas, types of chest pain
(
χ
2
1
=13.3,
P
<.001), ST wave depression (
χ
2
1
=11.7,
P
=.001),
number of vessels calcified by fluoroscopy (
χ
2
1
=19.9,
P
<.001),
and thallium (
χ
2
1
=15.1,
P
<.001) were statistically significant
at the 1% level. Comparing this full model with the intercept
only model, it was found that
χ
2
1
= 77.8 and
P
<.001. These
results illustrate that the full model had a better model fit than
both the intercept only model. However, IBMWA uses the LR
test to compare models with the reduced fit single predictor
model as the default setting, whereas SPSS uses the baseline,
intercept only model as the default setting for LR test
comparison.
A chi-square analysis was also performed using SPSS with a
resulting likelihood ratio of 78% for comparison purposes.
Based on the normal exam or reversible defect on thallium
testing, the chi-square test revealed a significant relationship
(
χ
2
1
= 76.1,
P
<.001) and an effect size of 0.53 for the normal
test and 0.67 for the reversible defect test.
Microsoft Excel Analysis ToolPak
The ToolPak software can only conduct linear regression, not
logistic regression for classification.
Analysis was not performed because a chi-square test would
have to be manually run between the target attribute and each
column. The expected values would need to be calculated and
run against the actual values to arrive at the chi-square result
and
P
value. This is very labor intensive compared with the
other platforms tested.
Microsoft SQL Server Analysis Services
Data were analyzed using a decision tree and neural network
to compare for classification accuracy. To train the classifier
models, 70% of the data was used, whereas the remaining 30%
was held out for testing. The decision tree algorithm was chosen
because of the ease of understanding the results, while a neural
network was selected because of the ability to generally produce
better classification results. The decision tree yielded a
sensitivity of 0.80 and specificity of 0.78, while neural networks
yielded a sensitivity of 0.77 and a specificity of 0.92. Both
algorithms have parameters that can be adjusted to improve
classification accuracy; however, these parameters need to be
adjusted cautiously to avoid “overfitting” the model.
Waikato Environment for Knowledge Analysis
A J48 decision tree was used as the algorithm with 10-fold cross
validation. The outcome was correctly classified 78% of the
time. The precision for the presence of heart disease was 0.931
and recall (sensitivity) was 0.628. Precision for the absence of
heart disease was 0.692 and the recall was 0.947.
Summary
These preliminary informal analyses indicate that the 4
analytical programs provide similar results using the same
dataset. WEKA does provide a confusion matrix, Kappa statistic,
and receiver operator characteristics curve area statistic, with
neither of these analytics supplied by IBMWA. WEKA, in
contrast to IBMWA, includes more than 50 different algorithms,
without any recommendations regarding the optimal choice.
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 8
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX
Table 7.
Results of the comparison of different analytical packages.
Results
Software package
Using logistic regression, the thallium test had a predictive strength of 76% (percent correct classification); chi-
square test revealed
P
<.001 and an effect size of 0.48 (normal test) and 0.63 (reversible defect)
IBM Watson Analytics
Using logistic regression, a full model with thallium, number of vessels calcified on fluoroscopy, and interaction
test increased the predictive strength to 78%; however, a statistically insignificant chi-square test proved that the
single model using thallium had the better model fit.
χ
2
1
= 76.1,
P
<.001; effect size 0.53 (normal test) and 0.67 (reversible defect)
Statistical Package for the Social
Sciences
Decision tree analysis yielded a sensitivity of 0.80 and specificity of 0.78, while neural networks yielded a sensi-
tivity of 0.77 and a specificity of 0.92
SQL Server Analysis Services
Decision tree precision for presence of heart disease was 0.93 and recall (sensitivity) was 0.63; precision for absence
of heart disease was 0.69 and recall was 0.95
Waikato Environment for Knowl-
edge Analysis
Discussion
Principal Findings
According to Dr. Bill Hersh, “Analytics and related activities
are the future of clinical informatics, realizing the goal of my
definition of the field, which is the use of information to improve
individual health, health care, public health, and biomedical
research [
15
].” To achieve this goal, we will need a well-trained
workforce and supportive analytical tools.
IBMWA is an analytical program based on SPSS that
automatically generates descriptive, predictive, and visual
analytics. This approach is compatible with “greater statistics”
proposed by John Chambers in 1993 [
16
]. Traditional statistics
can be laborious when manual computation of complicated
formulas is required. Steps to simplify this approach will likely
be well received. One could argue that automating analytics is
a logical progression, similar to using electronic medical
calculators, instead of paper calculations or using the “what you
see is what you get” program to create webpages, rather than
requiring html programming. This program will likely open the
analytics playing field to a larger audience of health care
workers.
The learning curve for IBMWA is much less steep than
Microsoft Excel Analysis ToolPak, SPSS, WEKA, or Microsoft
Server Analysis Services. Instead of needing an extensive
background in statistics to decide on the statistical method of
choice, this is performed automatically for the user. A busy
health care worker might use this program to gain preliminary
results and then consult an expert in data science or statistics.
IBMWA is able to handle very large datasets and applies the
most common statistical tests required, but does not perform
data mining using machine-learning techniques, such as neural
or Bayes networks, and is not appropriate for many big data
sets. The statistical approach is, however, complimentary to the
machine-learning approach. Statistical modeling using a program
such as IBMWA usually involves smaller datasets, a hypothesis,
and a list of assumptions. Machine-learning, on the other hand,
can handle larger datasets, and does not require the same
hypotheses or assumptions. An overview of the existing software
programs supports IBMWA as belonging in the overlap region
between data mining and statistics as demonstrated in
Figure
6
. In addition, this preview of the use of multiple software
programs initiates a scholarly conversation concerning the
considerable overlap between statistics and machine learning
as exemplified in
Figure 6
[
17
].
A comparison of IBMWA with 3 other data analytical software
resulted in similar, but not identical results. We did not report
results with Microsoft Excel due its inability to perform logistic
regression and the labor intensive nature of the analysis.
IBMWA may be a helpful adjunct approach to teaching both
statistics and data mining, given its speed, functionality, and
ease of use. Case studies could be presented in the domain of
interest and both the clinical results and statistical methods
could be discussed. The average user would be able to see
missing data, skewed distributions, and outliers with minimal
effort. Large datasets are amenable to data analyses and quick
response outcomes using IBMWA- a key element in teaching
and learning statistical concepts. In the University of West
Florida, IBMWA is used to augment understanding and
applications of statistical concepts in several health informatics
and computer science courses. The use of NLP to help explore,
analyze, and visualize datasets would be helpful for most
graduate students, regardless of field.
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 9
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

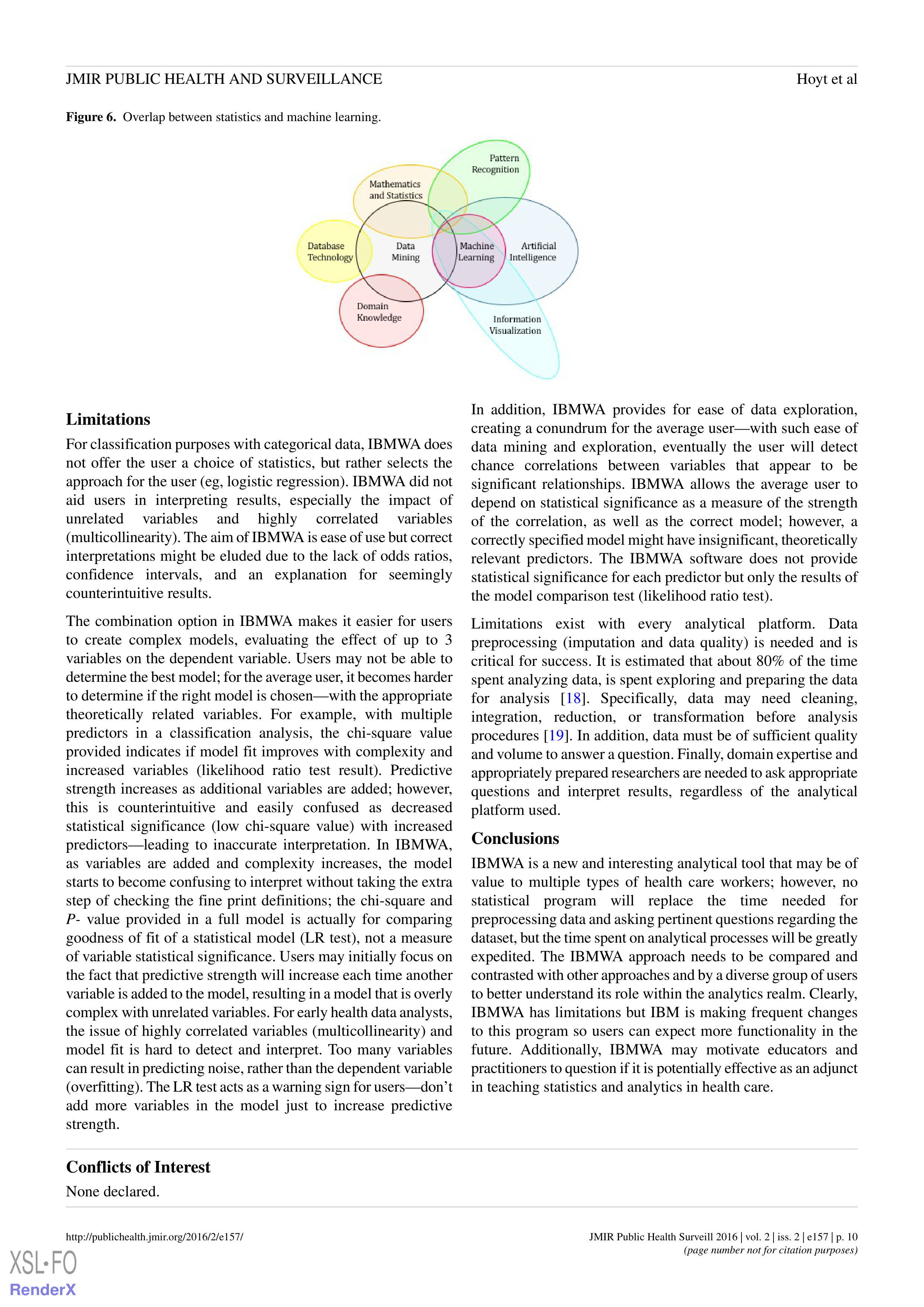

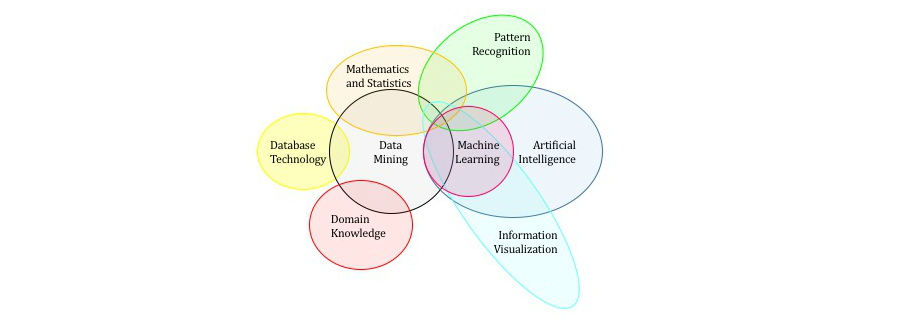

Figure 6.
Overlap between statistics and machine learning.
Limitations
For classification purposes with categorical data, IBMWA does
not offer the user a choice of statistics, but rather selects the
approach for the user (eg, logistic regression). IBMWA did not
aid users in interpreting results, especially the impact of
unrelated
variables
and
highly
correlated
variables
(multicollinearity). The aim of IBMWA is ease of use but correct
interpretations might be eluded due to the lack of odds ratios,
confidence intervals, and an explanation for seemingly
counterintuitive results.
The combination option in IBMWA makes it easier for users
to create complex models, evaluating the effect of up to 3
variables on the dependent variable. Users may not be able to
determine the best model; for the average user, it becomes harder
to determine if the right model is chosen—with the appropriate
theoretically related variables. For example, with multiple
predictors in a classification analysis, the chi-square value
provided indicates if model fit improves with complexity and
increased variables (likelihood ratio test result). Predictive
strength increases as additional variables are added; however,
this is counterintuitive and easily confused as decreased
statistical significance (low chi-square value) with increased
predictors—leading to inaccurate interpretation. In IBMWA,
as variables are added and complexity increases, the model
starts to become confusing to interpret without taking the extra
step of checking the fine print definitions; the chi-square and
P-
value provided in a full model is actually for comparing
goodness of fit of a statistical model (LR test), not a measure
of variable statistical significance. Users may initially focus on
the fact that predictive strength will increase each time another
variable is added to the model, resulting in a model that is overly
complex with unrelated variables. For early health data analysts,
the issue of highly correlated variables (multicollinearity) and
model fit is hard to detect and interpret. Too many variables
can result in predicting noise, rather than the dependent variable
(overfitting). The LR test acts as a warning sign for users—don’t
add more variables in the model just to increase predictive
strength.
In addition, IBMWA provides for ease of data exploration,
creating a conundrum for the average user—with such ease of
data mining and exploration, eventually the user will detect
chance correlations between variables that appear to be
significant relationships. IBMWA allows the average user to
depend on statistical significance as a measure of the strength
of the correlation, as well as the correct model; however, a
correctly specified model might have insignificant, theoretically
relevant predictors. The IBMWA software does not provide
statistical significance for each predictor but only the results of
the model comparison test (likelihood ratio test).
Limitations exist with every analytical platform. Data
preprocessing (imputation and data quality) is needed and is
critical for success. It is estimated that about 80% of the time
spent analyzing data, is spent exploring and preparing the data
for analysis [
18
]. Specifically, data may need cleaning,
integration, reduction, or transformation before analysis
procedures [
19
]. In addition, data must be of sufficient quality
and volume to answer a question. Finally, domain expertise and
appropriately prepared researchers are needed to ask appropriate
questions and interpret results, regardless of the analytical
platform used.
Conclusions
IBMWA is a new and interesting analytical tool that may be of
value to multiple types of health care workers; however, no
statistical program will replace the time needed for
preprocessing data and asking pertinent questions regarding the
dataset, but the time spent on analytical processes will be greatly
expedited. The IBMWA approach needs to be compared and
contrasted with other approaches and by a diverse group of users
to better understand its role within the analytics realm. Clearly,
IBMWA has limitations but IBM is making frequent changes
to this program so users can expect more functionality in the
future. Additionally, IBMWA may motivate educators and
practitioners to question if it is potentially effective as an adjunct
in teaching statistics and analytics in health care.
Conflicts of Interest
None declared.
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 10
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

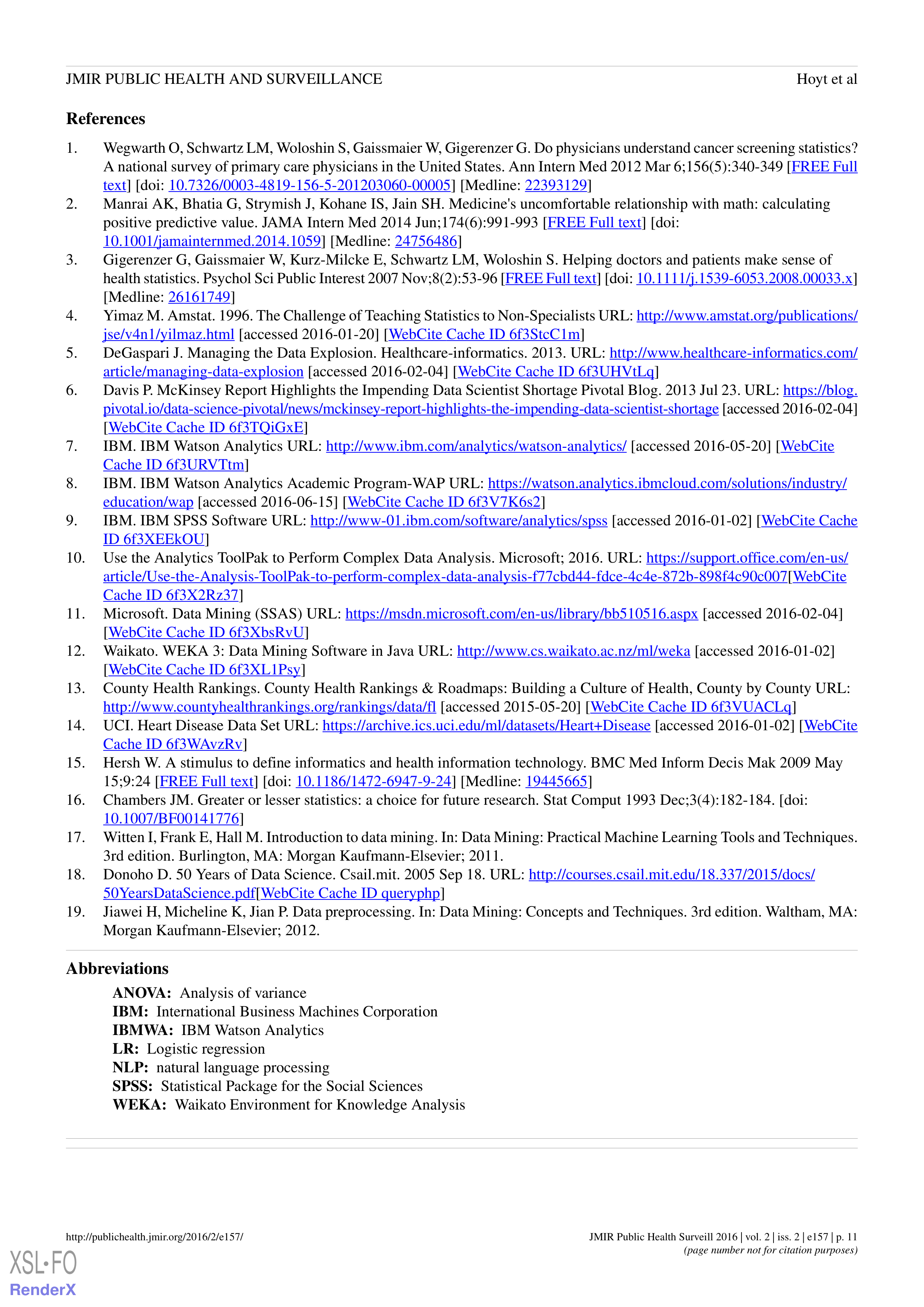

References
1.
Wegwarth O, Schwartz LM, Woloshin S, Gaissmaier W, Gigerenzer G. Do physicians understand cancer screening statistics?
A national survey of primary care physicians in the United States. Ann Intern Med 2012 Mar 6;156(5):340-349 [
FREE Full
text
] [doi:
10.7326/0003-4819-156-5-201203060-00005
] [Medline:
22393129
]
2.
Manrai AK, Bhatia G, Strymish J, Kohane IS, Jain SH. Medicine's uncomfortable relationship with math: calculating
positive predictive value. JAMA Intern Med 2014 Jun;174(6):991-993 [
FREE Full text
] [doi:
10.1001/jamainternmed.2014.1059
] [Medline:
24756486
]
3.
Gigerenzer G, Gaissmaier W, Kurz-Milcke E, Schwartz LM, Woloshin S. Helping doctors and patients make sense of
health statistics. Psychol Sci Public Interest 2007 Nov;8(2):53-96 [
FREE Full text
] [doi:
10.1111/j.1539-6053.2008.00033.x
]
[Medline:
26161749
]
4.
Yimaz M. Amstat. 1996. The Challenge of Teaching Statistics to Non-Specialists URL:
http://www.amstat.org/publications/
jse/v4n1/yilmaz.html
[accessed 2016-01-20] [
WebCite Cache ID 6f3StcC1m
]
5.
DeGaspari J. Managing the Data Explosion. Healthcare-informatics. 2013. URL:
http://www.healthcare-informatics.com/
article/managing-data-explosion
[accessed 2016-02-04] [
WebCite Cache ID 6f3UHVtLq
]
6.
Davis P. McKinsey Report Highlights the Impending Data Scientist Shortage Pivotal Blog. 2013 Jul 23. URL:
https://blog.
pivotal.io/data-science-pivotal/news/mckinsey-report-highlights-the-impending-data-scientist-shortage
[accessed 2016-02-04]
[
WebCite Cache ID 6f3TQiGxE
]
7.
IBM. IBM Watson Analytics URL:
http://www.ibm.com/analytics/watson-analytics/
[accessed 2016-05-20] [
WebCite
Cache ID 6f3URVTtm
]
8.
IBM. IBM Watson Analytics Academic Program-WAP URL:
https://watson.analytics.ibmcloud.com/solutions/industry/
education/wap
[accessed 2016-06-15] [
WebCite Cache ID 6f3V7K6s2
]
9.
IBM. IBM SPSS Software URL:
http://www-01.ibm.com/software/analytics/spss
[accessed 2016-01-02] [
WebCite Cache
ID 6f3XEEkOU
]
10.
Use the Analytics ToolPak to Perform Complex Data Analysis. Microsoft; 2016. URL:
https://support.office.com/en-us/
article/Use-the-Analysis-ToolPak-to-perform-complex-data-analysis-f77cbd44-fdce-4c4e-872b-898f4c90c007
[
WebCite
Cache ID 6f3X2Rz37
]
11.
Microsoft. Data Mining (SSAS) URL:
https://msdn.microsoft.com/en-us/library/bb510516.aspx
[accessed 2016-02-04]
[
WebCite Cache ID 6f3XbsRvU
]
12.
Waikato. WEKA 3: Data Mining Software in Java URL:
http://www.cs.waikato.ac.nz/ml/weka
[accessed 2016-01-02]
[
WebCite Cache ID 6f3XL1Psy
]
13.
County Health Rankings. County Health Rankings & Roadmaps: Building a Culture of Health, County by County URL:
http://www.countyhealthrankings.org/rankings/data/fl
[accessed 2015-05-20] [
WebCite Cache ID 6f3VUACLq
]
14.
UCI. Heart Disease Data Set URL:
https://archive.ics.uci.edu/ml/datasets/Heart+Disease
[accessed 2016-01-02] [
WebCite
Cache ID 6f3WAvzRv
]
15.
Hersh W. A stimulus to define informatics and health information technology. BMC Med Inform Decis Mak 2009 May
15;9:24 [
FREE Full text
] [doi:
10.1186/1472-6947-9-24
] [Medline:
19445665
]
16.
Chambers JM. Greater or lesser statistics: a choice for future research. Stat Comput 1993 Dec;3(4):182-184. [doi:
10.1007/BF00141776
]
17.
Witten I, Frank E, Hall M. Introduction to data mining. In: Data Mining: Practical Machine Learning Tools and Techniques.
3rd edition. Burlington, MA: Morgan Kaufmann-Elsevier; 2011.
18.
Donoho D. 50 Years of Data Science. Csail.mit. 2005 Sep 18. URL:
http://courses.csail.mit.edu/18.337/2015/docs/
50YearsDataScience.pdf
[
WebCite Cache ID queryphp
]
19.
Jiawei H, Micheline K, Jian P. Data preprocessing. In: Data Mining: Concepts and Techniques. 3rd edition. Waltham, MA:
Morgan Kaufmann-Elsevier; 2012.
Abbreviations
ANOVA:
Analysis of variance
IBM:
International Business Machines Corporation
IBMWA:
IBM Watson Analytics
LR:
Logistic regression
NLP:
natural language processing
SPSS:
Statistical Package for the Social Sciences
WEKA:
Waikato Environment for Knowledge Analysis
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 11
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX

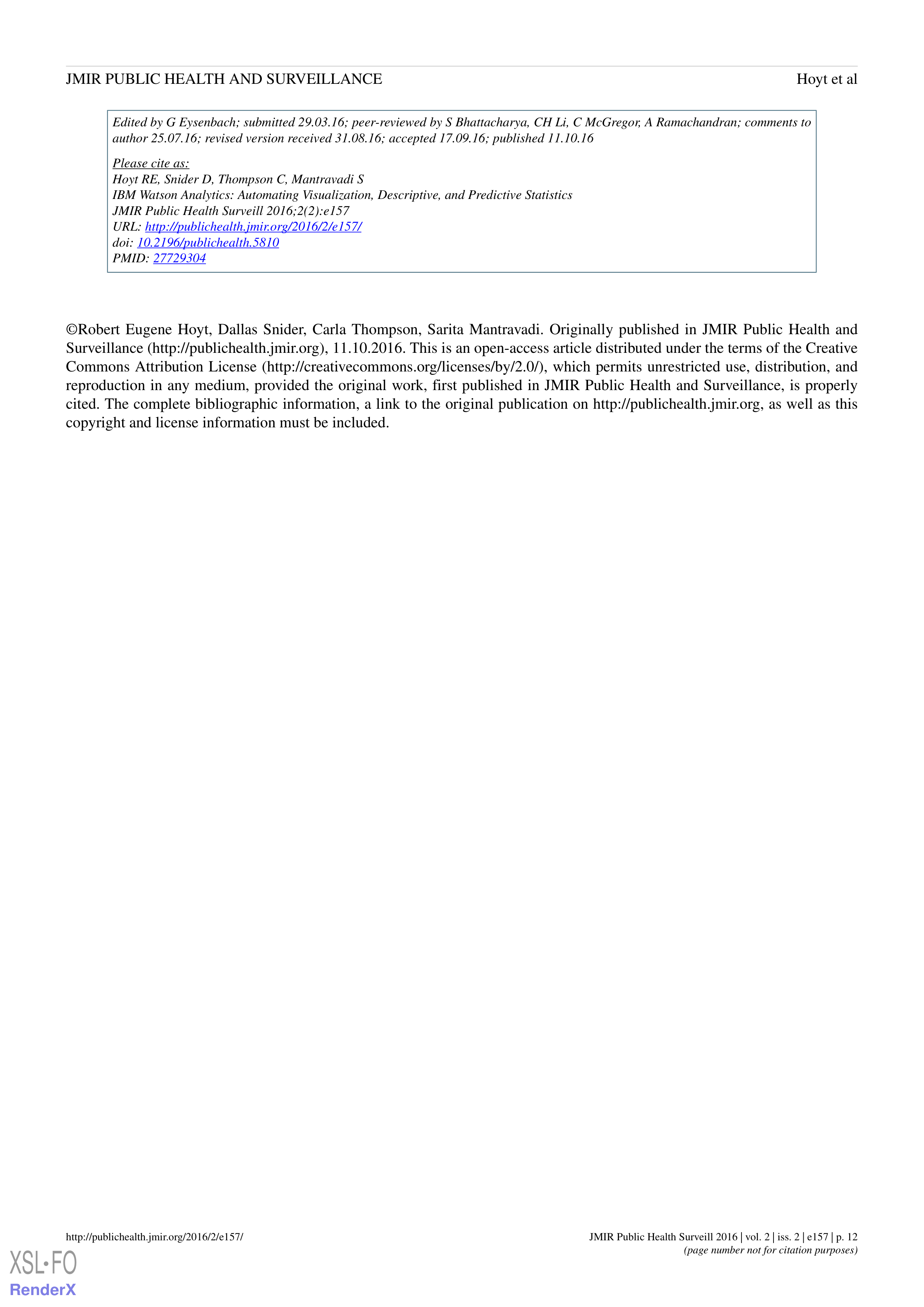

Edited by G Eysenbach; submitted 29.03.16; peer-reviewed by S Bhattacharya, CH Li, C McGregor, A Ramachandran; comments to
author 25.07.16; revised version received 31.08.16; accepted 17.09.16; published 11.10.16
Please cite as:
Hoyt RE, Snider D, Thompson C, Mantravadi S
IBM Watson Analytics: Automating Visualization, Descriptive, and Predictive Statistics
JMIR Public Health Surveill 2016;2(2):e157
URL:
http://publichealth.jmir.org/2016/2/e157/
doi:
10.2196/publichealth.5810
PMID:
27729304
©Robert Eugene Hoyt, Dallas Snider, Carla Thompson, Sarita Mantravadi. Originally published in JMIR Public Health and
Surveillance (http://publichealth.jmir.org), 11.10.2016. This is an open-access article distributed under the terms of the Creative
Commons Attribution License (http://creativecommons.org/licenses/by/2.0/), which permits unrestricted use, distribution, and
reproduction in any medium, provided the original work, first published in JMIR Public Health and Surveillance, is properly
cited. The complete bibliographic information, a link to the original publication on http://publichealth.jmir.org, as well as this
copyright and license information must be included.
JMIR Public Health Surveill 2016 | vol. 2 | iss. 2 | e157 | p. 12
http://publichealth.jmir.org/2016/2/e157/
(page number not for citation purposes)
Hoyt et al
JMIR PUBLIC HEALTH AND SURVEILLANCE
XSL
•
FO
RenderX
