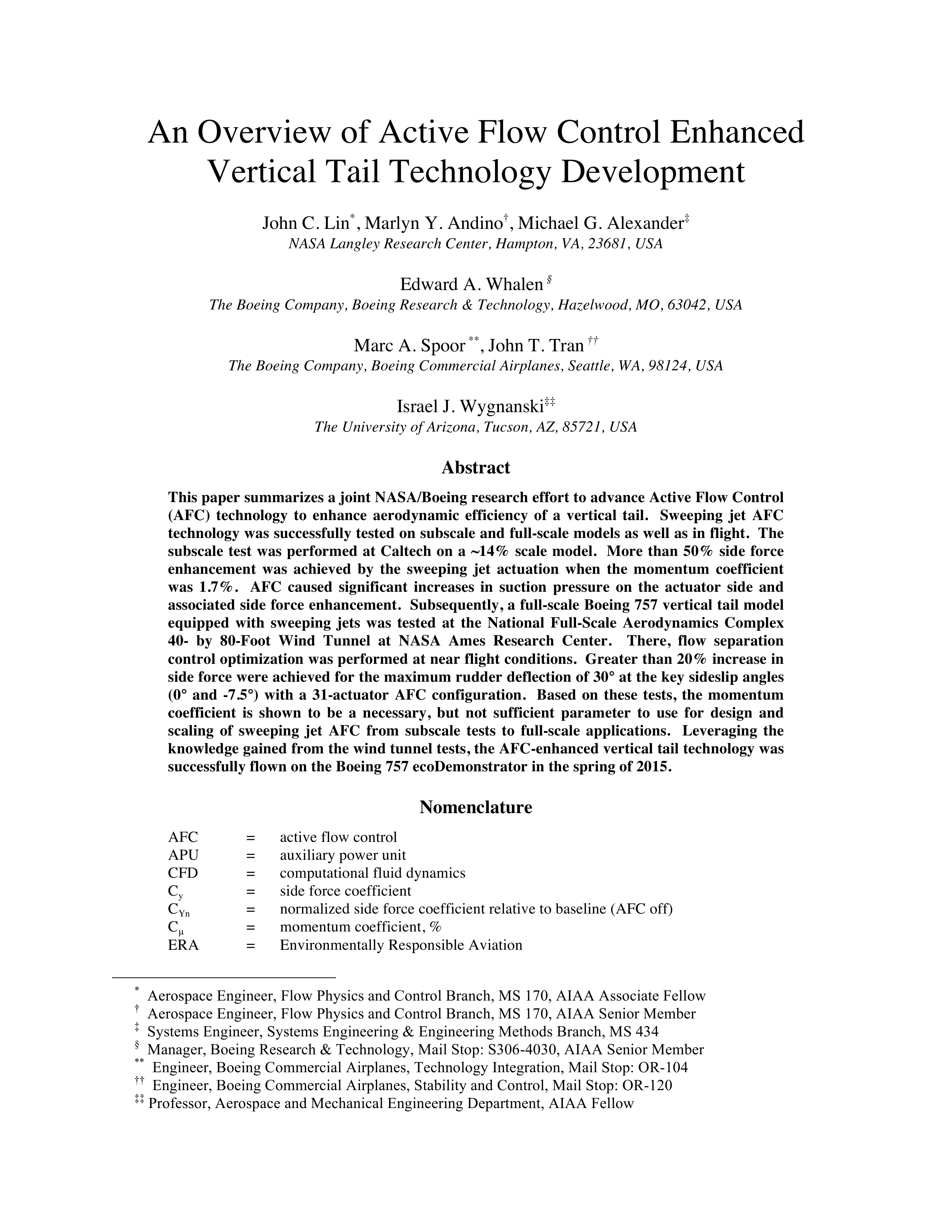

An Overview of Active Flow Control Enhanced
Vertical Tail Technology Development
John C. Lin
*
, Marlyn Y. Andino
†
, Michael G. Alexander
‡
NASA Langley Research Center, Hampton, VA, 23681, USA
Edward A. Whalen
§
The Boeing Company, Boeing Research & Technology, Hazelwood, MO, 63042, USA
Marc A. Spoor
**
, John T. Tran
††
The Boeing Company, Boeing Commercial Airplanes, Seattle, WA, 98124, USA
Israel J. Wygnanski
‡‡
The University of Arizona, Tucson, AZ, 85721, USA
*
Aerospace Engineer, Flow Physics and Control Branch, MS 170, AIAA Associate Fellow
†
Aerospace Engineer, Flow Physics and Control Branch, MS 170, AIAA Senior Member
‡
Systems Engineer, Systems Engineering & Engineering Methods Branch, MS 434
§
Manager, Boeing Research & Technology, Mail Stop: S306-4030, AIAA Senior Member
**
Engineer, Boeing Commercial Airplanes, Technology Integration, Mail Stop: OR-104
††
Engineer, Boeing Commercial Airplanes, Stability and Control, Mail Stop: OR-120
‡‡
Professor, Aerospace and Mechanical Engineering Department, AIAA Fellow
Abstract
This paper summarizes a joint NASA/Boeing research effort to advance Active Flow Control
(AFC) technology to enhance aerodynamic efficiency of a vertical tail. Sweeping jet AFC
technology was successfully tested on subscale and full-scale models as well as in flight. The
subscale test was performed at Caltech on a ~14% scale model. More than 50% side force
enhancement was achieved by the sweeping jet actuation when the momentum coefficient

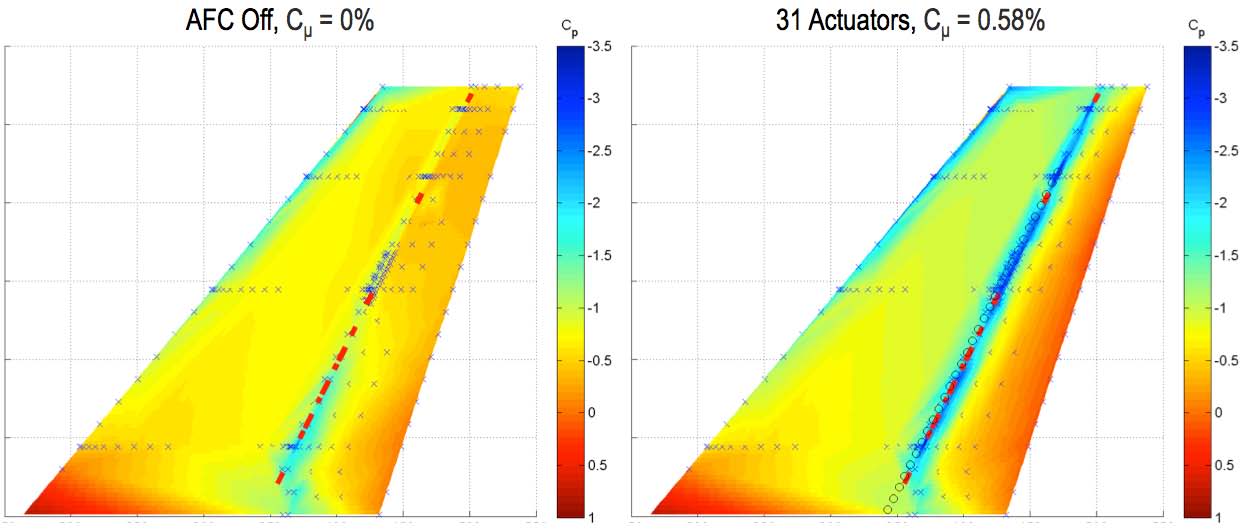

was 1.7%. AFC caused significant increases in suction pressure on the actuator side and
associated side force enhancement. Subsequently, a full-scale Boeing 757 vertical tail model
equipped with sweeping jets was tested at the National Full-Scale Aerodynamics Complex
40- by 80-Foot Wind Tunnel at NASA Ames Research Center. There, flow separation
control optimization was performed at near flight conditions. Greater than 20% increase in
side force were achieved for the maximum rudder deflection of 30° at the key sideslip angles
(0° and -7.5°) with a 31-actuator AFC configuration. Based on these tests, the momentum
coefficient is shown to be a necessary, but not sufficient parameter to use for design and
scaling of sweeping jet AFC from subscale tests to full-scale applications. Leveraging the
knowledge gained from the wind tunnel tests, the AFC-enhanced vertical tail technology was

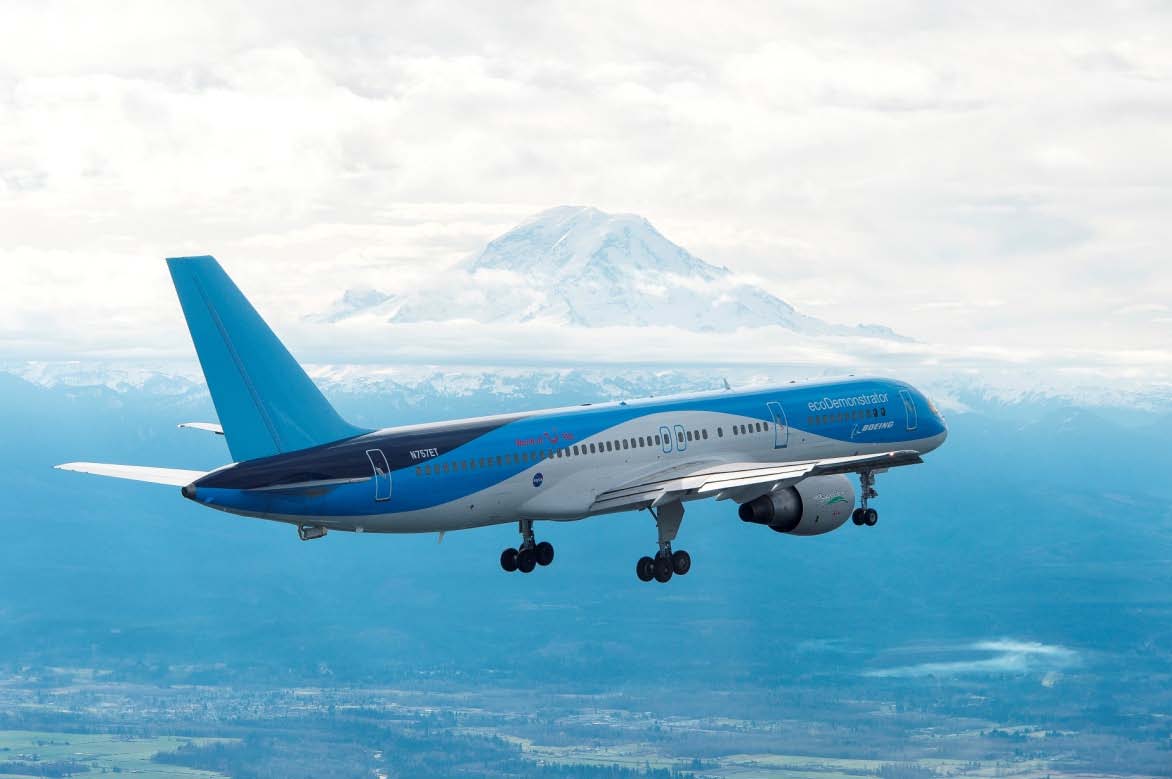

successfully flown on the Boeing 757 ecoDemonstrator in the spring of 2015.
Nomenclature
AFC
=
active flow control
APU
=
auxiliary power unit
CFD
=
computational fluid dynamics
C
y
=
side force coefficient
C
Yn
=
normalized side force coefficient relative to baseline (AFC off)
C
μ
=
momentum coefficient, %
ERA
=
Environmentally Responsible Aviation
2
M
∞
=
free stream Mach number
NFAC
=
National Full-Scale Aerodynamics Complex
Re
=
Reynolds number based on mean aerodynamic chord
U
∞
=
free stream velocity, knots
β
=
sideslip angle, degrees
β*
=
normalized sideslip angle (relative to maximum sideslip angle)
δ
Rudder
=
rudder deflection angle, degrees
δ*
=
normalized rudder deflection angle (relative to maximum rudder deflection angle)
%ΔC
y
=
% difference in C
y
with respect to AFC off, 100%*(C
y
- C
y, AFC off
)/ C
y, AFC off

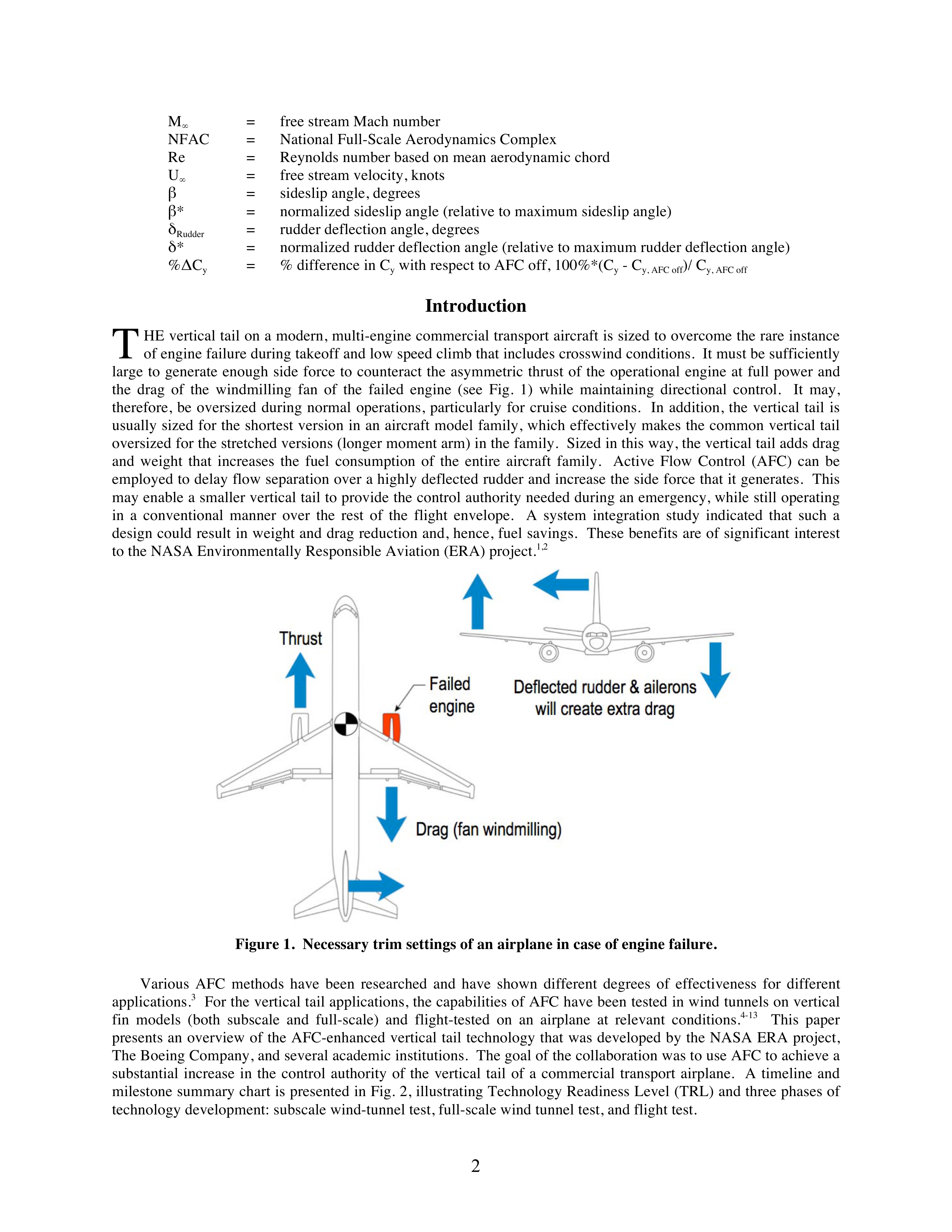

Introduction
HE vertical tail on a modern, multi-engine commercial transport aircraft is sized to overcome the rare instance
of engine failure during takeoff and low speed climb that includes crosswind conditions. It must be sufficiently
large to generate enough side force to counteract the asymmetric thrust of the operational engine at full power and
the drag of the windmilling fan of the failed engine (see Fig. 1) while maintaining directional control. It may,
therefore, be oversized during normal operations, particularly for cruise conditions. In addition, the vertical tail is
usually sized for the shortest version in an aircraft model family, which effectively makes the common vertical tail
oversized for the stretched versions (longer moment arm) in the family. Sized in this way, the vertical tail adds drag
and weight that increases the fuel consumption of the entire aircraft family. Active Flow Control (AFC) can be
employed to delay flow separation over a highly deflected rudder and increase the side force that it generates. This
may enable a smaller vertical tail to provide the control authority needed during an emergency, while still operating
in a conventional manner over the rest of the flight envelope. A system integration study indicated that such a
design could result in weight and drag reduction and, hence, fuel savings. These benefits are of significant interest
to the NASA Environmentally Responsible Aviation (ERA) project.
1,2

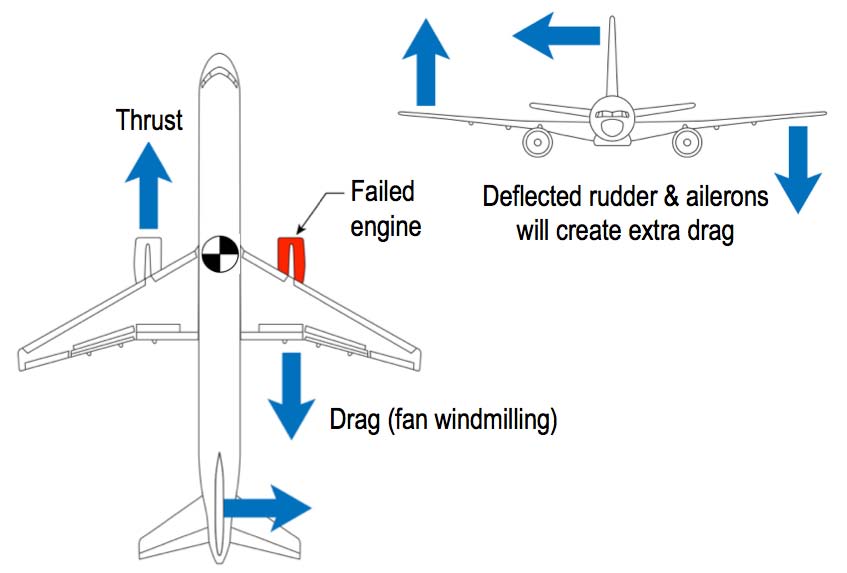

Figure 1. Necessary trim settings of an airplane in case of engine failure.
Various AFC methods have been researched and have shown different degrees of effectiveness for different
applications.
3
For the vertical tail applications, the capabilities of AFC have been tested in wind tunnels on vertical
fin models (both subscale and full-scale) and flight-tested on an airplane at relevant conditions.
4-13
This paper
presents an overview of the AFC-enhanced vertical tail technology that was developed by the NASA ERA project,
The Boeing Company, and several academic institutions. The goal of the collaboration was to use AFC to achieve a
substantial increase in the control authority of the vertical tail of a commercial transport airplane. A timeline and
milestone summary chart is presented in Fig. 2, illustrating Technology Readiness Level (TRL) and three phases of
technology development: subscale wind-tunnel test, full-scale wind tunnel test, and flight test.
T
3

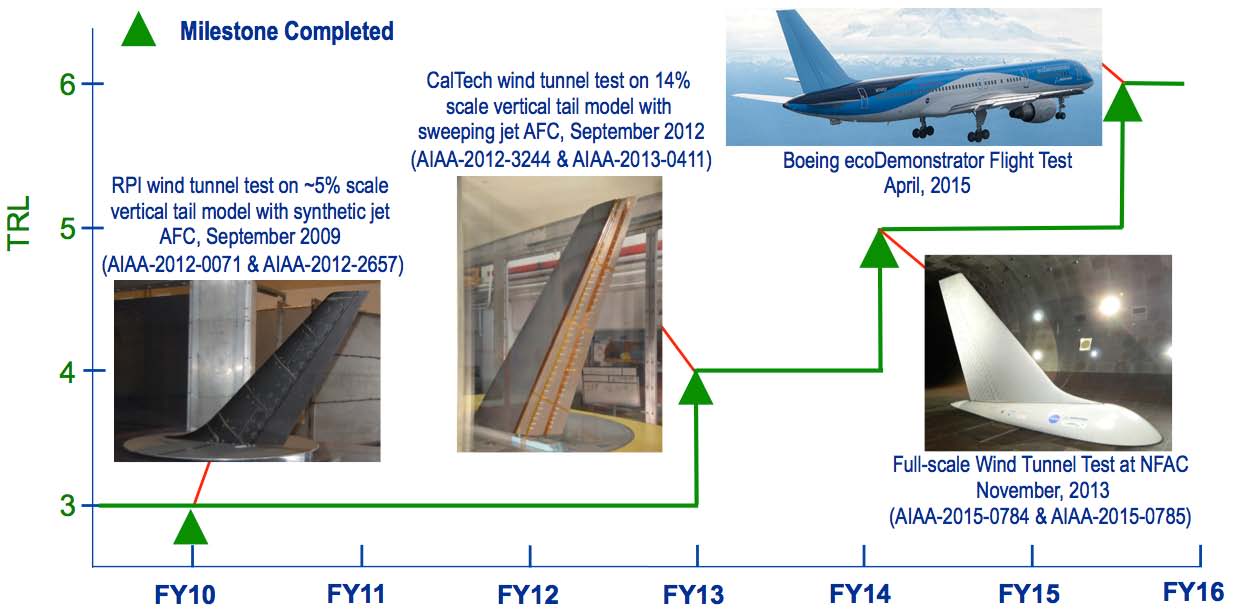

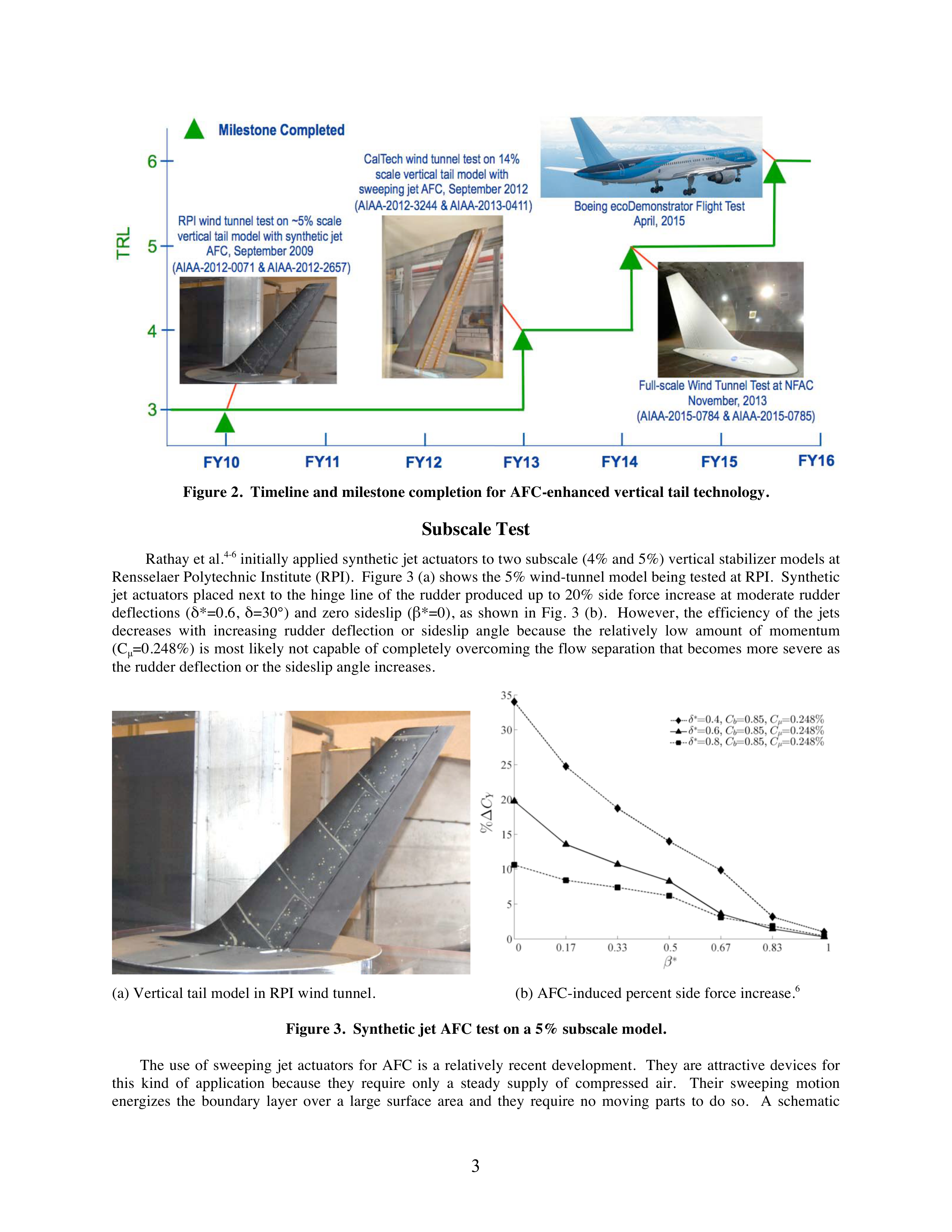

Figure 2. Timeline and milestone completion for AFC-enhanced vertical tail technology.
Subscale Test
Rathay et al.
4-6
initially applied synthetic jet actuators to two subscale (4% and 5%) vertical stabilizer models at

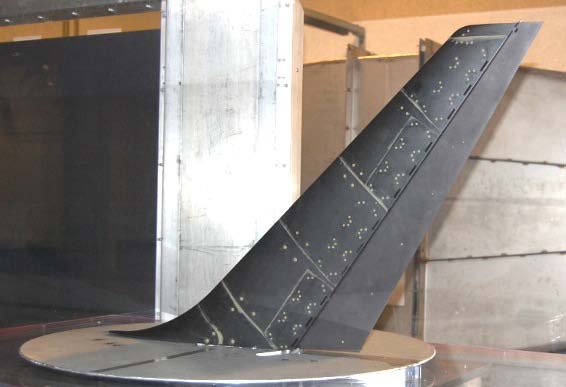

Rensselaer Polytechnic Institute (RPI). Figure 3 (a) shows the 5% wind-tunnel model being tested at RPI. Synthetic
jet actuators placed next to the hinge line of the rudder produced up to 20% side force increase at moderate rudder
deflections (δ*=0.6, δ=30°) and zero sideslip (β*=0), as shown in Fig. 3 (b). However, the efficiency of the jets
decreases with increasing rudder deflection or sideslip angle because the relatively low amount of momentum
(C
μ
=0.248%) is most likely not capable of completely overcoming the flow separation that becomes more severe as
the rudder deflection or the sideslip angle increases.
(a) Vertical tail model in RPI wind tunnel.

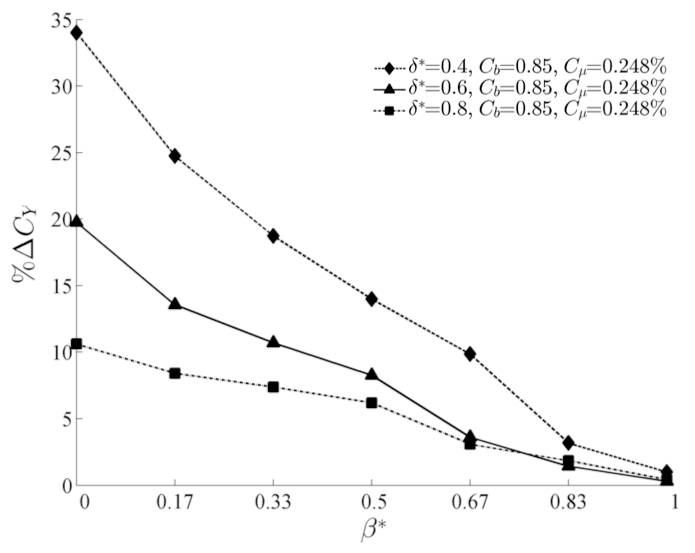

(b) AFC-induced percent side force increase.
6
Figure 3. Synthetic jet AFC test on a 5% subscale model.
The use of sweeping jet actuators for AFC is a relatively recent development. They are attractive devices for
this kind of application because they require only a steady supply of compressed air. Their sweeping motion
energizes the boundary layer over a large surface area and they require no moving parts to do so. A schematic
4
drawing of a typical actuator that was reproduced from a paper by Raman and Raghu
7
is shown in Fig. 4. Seele et
al.
8,9
applied sweeping jet actuators to a subscale (~14%) vertical tail model at Caltech Lucas wind tunnel (see Fig.
5(a)). Thirty-two sweeping jet actuators were placed on the rudder
8
and on the stabilizer trailing edge,
9
respectively,
in two series of wind tunnel tests.
Graff et al.
10
took the research a step further to incorporate different actuator size
and spacing effects and discussed the effects of the sweeping jet actuators on the spanwise flow over swept wings.
These three papers
8,9
reported a significant side force enhancement of approximately 50% at large rudder deflections
(δ
Rudder
= 30°), zero sideslip (β), and a momentum coefficient (C
μ

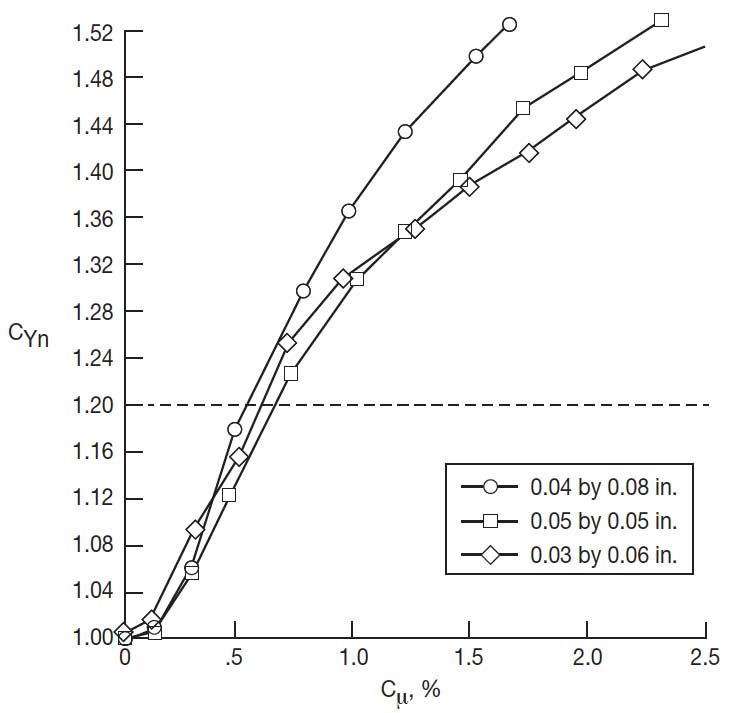

) of 1.7%. A typical example of normalized side
force enhancement as a function of C
μ
is shown in Fig. 5(b). Because of their significantly higher C
μ
output and
corresponding jet velocity, sweeping jets were selected over the synthetic jets for the subsequent full-scale AFC
wind tunnel test. The sweeping jets emanating from the trailing edge of the main element were also selected due to
their simpler system integration prospect.

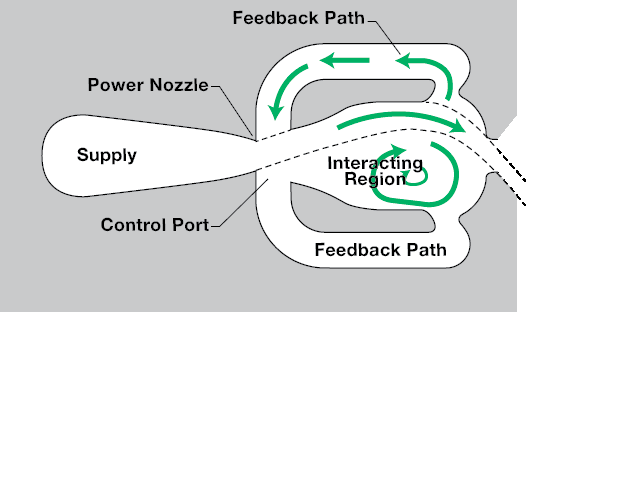

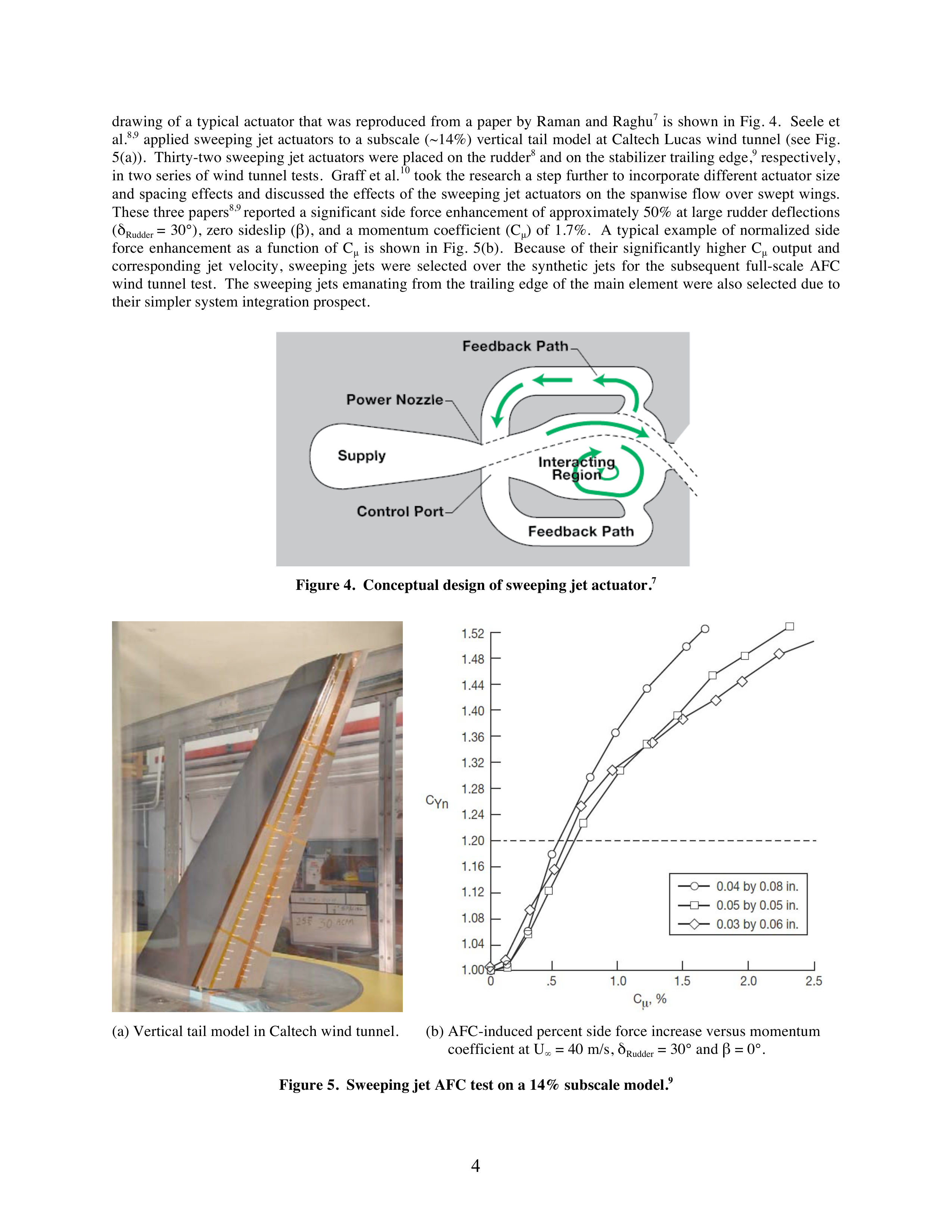

Figure 4. Conceptual design of sweeping jet actuator.
7

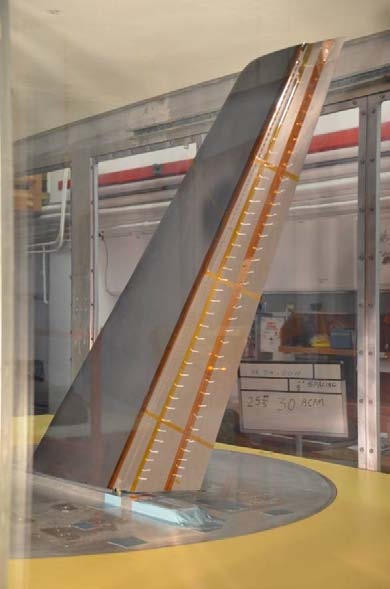

(a) Vertical tail model in Caltech wind tunnel. (b) AFC-induced percent side force increase versus momentum
coefficient at U
∞
= 40 m/s, δ
Rudder
= 30° and β = 0°.
Figure 5.
Sweeping jet AFC test on a 14% subscale model.
9
5

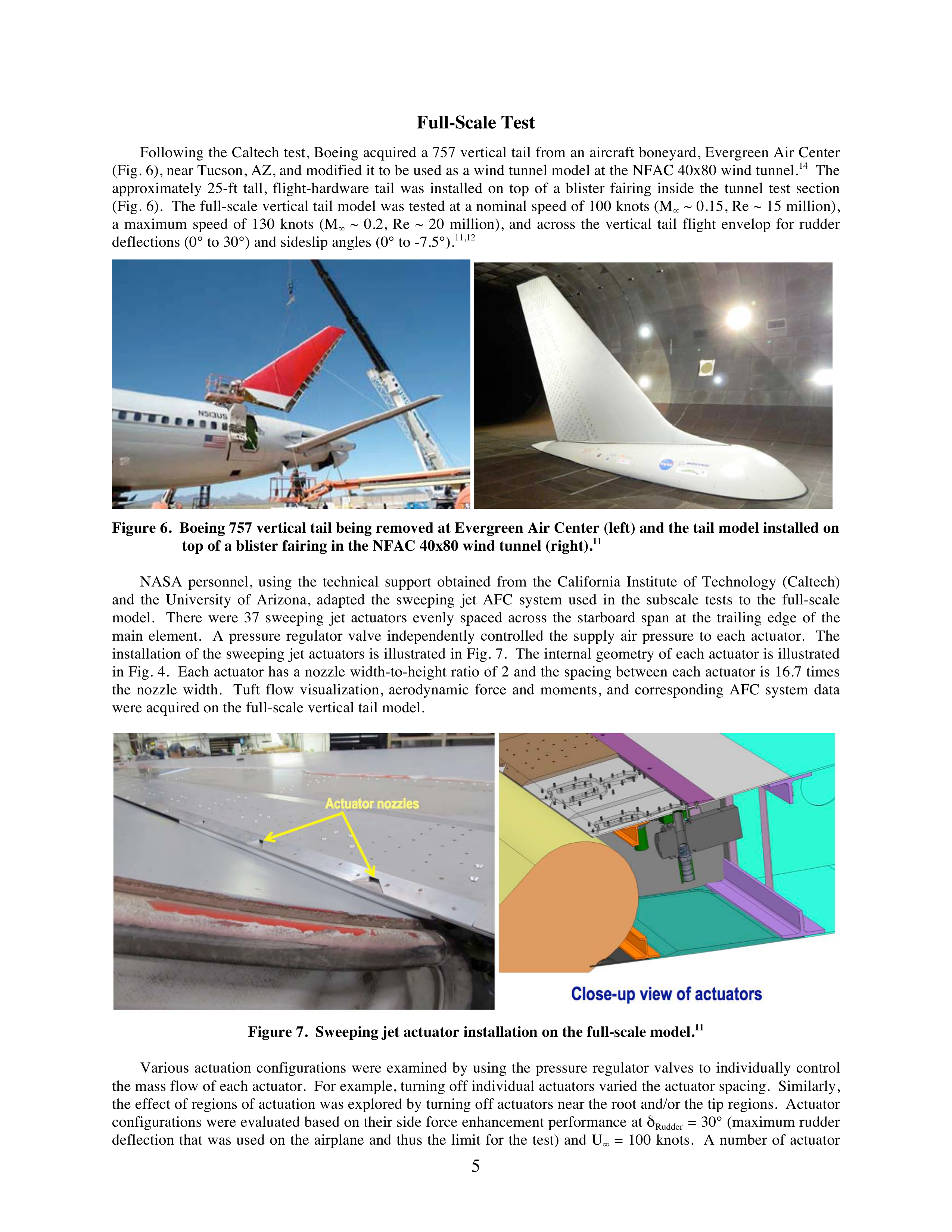

Full-Scale Test
Following the Caltech test, Boeing acquired a 757 vertical tail from an aircraft boneyard, Evergreen Air Center
(Fig. 6), near Tucson, AZ, and modified it to be used as a wind tunnel model at the NFAC 40x80 wind tunnel.
14
The
approximately 25-ft tall, flight-hardware tail was installed on top of a blister fairing inside the tunnel test section
(Fig. 6). The full-scale vertical tail model was tested at a nominal speed of 100 knots (M
∞
~ 0.15, Re ~ 15 million),
a maximum speed of 130 knots (M
∞
~ 0.2, Re ~ 20 million), and across the vertical tail flight envelop for rudder
deflections (0° to 30°) and sideslip angles (0° to -7.5°).
11,12

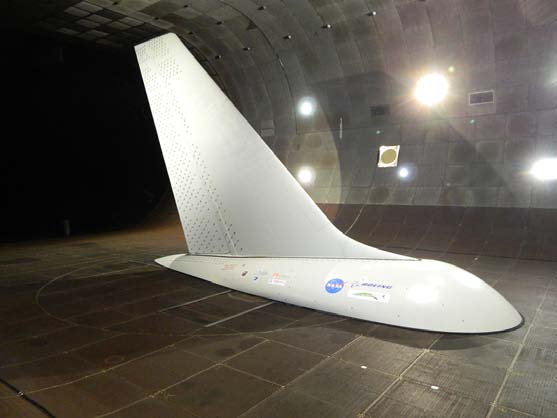

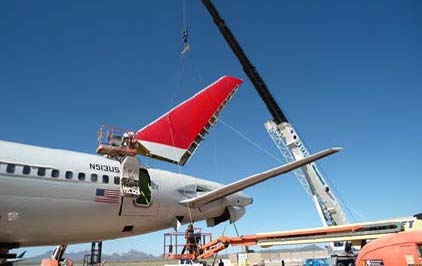

Figure 6. Boeing 757 vertical tail being removed at Evergreen Air Center (left) and the tail model installed on
top of a blister fairing in the NFAC 40x80 wind tunnel (right).
11
NASA personnel, using the technical support obtained from the California Institute of Technology (Caltech)
and the University of Arizona, adapted the sweeping jet AFC system used in the subscale tests
to the full-scale
model. There were 37 sweeping jet actuators evenly spaced across the starboard span at the trailing edge of the
main element. A pressure regulator valve independently controlled the supply air pressure to each actuator. The
installation of the sweeping jet actuators is illustrated in Fig. 7. The internal geometry of each actuator is illustrated
in Fig. 4. Each actuator has a nozzle width-to-height ratio of 2 and the spacing between each actuator is 16.7 times
the nozzle width. Tuft flow visualization, aerodynamic force and moments, and corresponding AFC system data
were acquired on the full-scale vertical tail model.

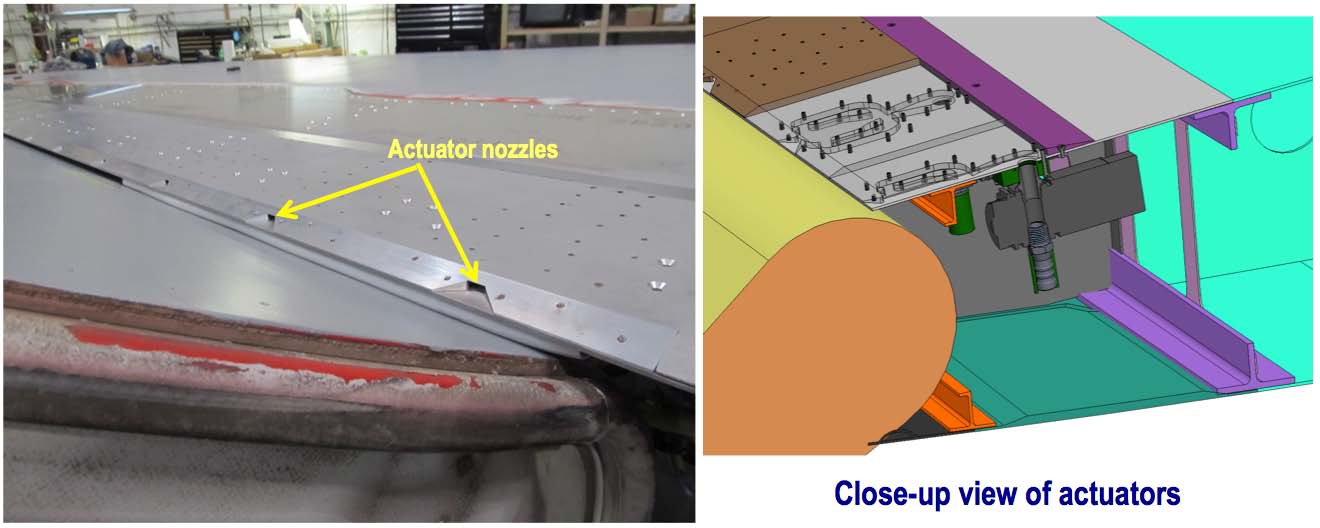

Figure 7. Sweeping jet actuator installation on the full-scale model.
11
Various actuation configurations were examined by using the pressure regulator valves to individually control
the mass flow of each actuator. For example, turning off individual actuators varied the actuator spacing. Similarly,
the effect of regions of actuation was explored by turning off actuators near the root and/or the tip regions. Actuator
configurations were evaluated based on their side force enhancement performance at δ
Rudder
= 30° (maximum rudder
deflection that was used on the airplane and thus the limit for the test) and U
∞
= 100 knots. A number of actuator
6
configurations produced a significant increase in side force (i.e., 20%) at maximum rudder deflection and at the
target sideslip angles (0° and -7.5°). Note that in the stability and control coordinate system used, positive rudder
deflection and negative sideslip angle result in positive side force.

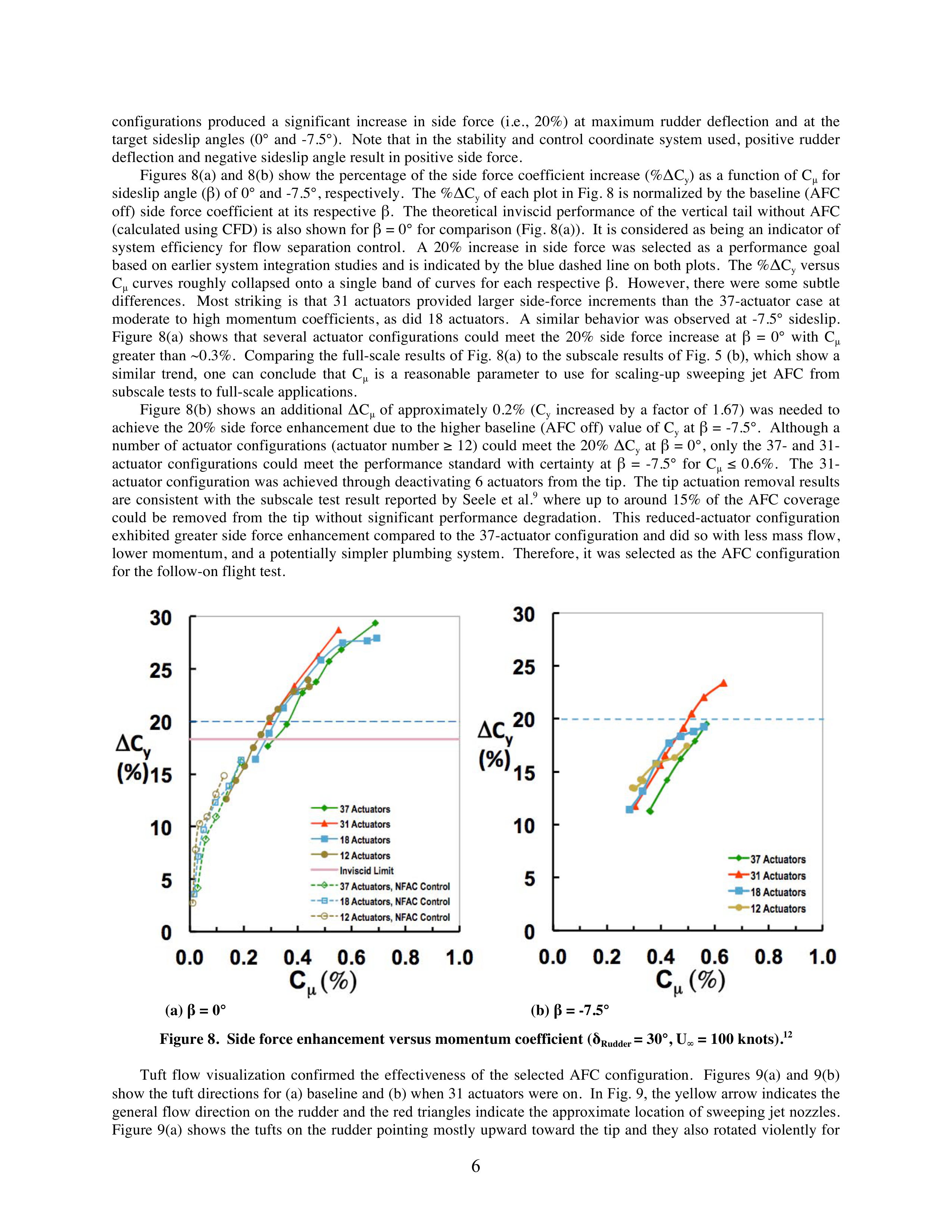

Figures 8(a) and 8(b) show the percentage of the side force coefficient increase (%ΔC
y
) as a function of C
μ
for
sideslip angle (β) of 0° and -7.5°, respectively. The %ΔC
y
of each plot in Fig. 8 is normalized by the baseline (AFC
off) side force coefficient at its respective β. The theoretical inviscid performance of the vertical tail without AFC
(calculated using CFD) is also shown for β = 0° for comparison (Fig. 8(a)). It is considered as being an indicator of
system efficiency for flow separation control. A 20% increase in side force was selected as a performance goal
based on earlier system integration studies and is indicated by the blue dashed line on both plots. The %ΔC
y
versus
C
μ
curves roughly collapsed onto a single band of curves for each respective β. However, there were some subtle
differences. Most striking is that 31 actuators provided larger side-force increments than the 37-actuator case at
moderate to high momentum coefficients, as did 18 actuators. A similar behavior was observed at -7.5° sideslip.
Figure 8(a) shows that several actuator configurations could meet the 20% side force increase at β = 0° with C
μ
greater than ~0.3%. Comparing the full-scale results of
Fig. 8(a) to the subscale results of Fig. 5 (b), which show a
similar trend,
one can conclude that C
μ
is a reasonable parameter to use for scaling-up sweeping jet AFC from
subscale tests to full-scale applications.
Figure 8(b) shows an additional ΔC
μ
of approximately 0.2% (C
y
increased by a factor of 1.67) was needed to
achieve the 20% side force enhancement due to the higher baseline (AFC off) value of C
y
at β = -7.5°. Although a
number of actuator configurations (actuator number ≥ 12) could meet the 20% ΔC
y
at β = 0°, only the 37- and 31-
actuator configurations could meet the performance standard with certainty at β = -7.5° for C
μ
≤ 0.6%. The 31-
actuator configuration was achieved through deactivating 6 actuators from the tip. The tip actuation removal results
are consistent with the subscale test result reported by Seele et al.
9
where up to around 15% of the AFC coverage
could be removed from the tip without significant performance degradation.
This reduced-actuator configuration
exhibited greater side force enhancement compared to the 37-actuator configuration and did so with less mass flow,
lower momentum, and a potentially simpler plumbing system. Therefore, it was selected as the AFC configuration
for the follow-on flight test.
(a) β = 0°
(b) β = -7.5°

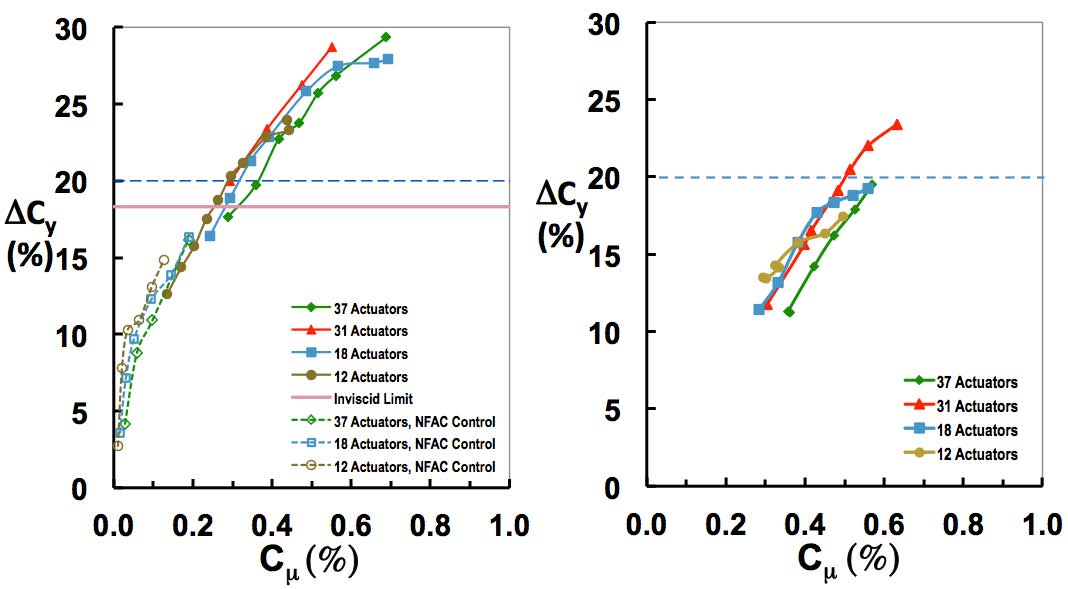

Figure 8. Side force enhancement versus momentum coefficient (δ
Rudder
= 30°, U
∞
= 100 knots).
12

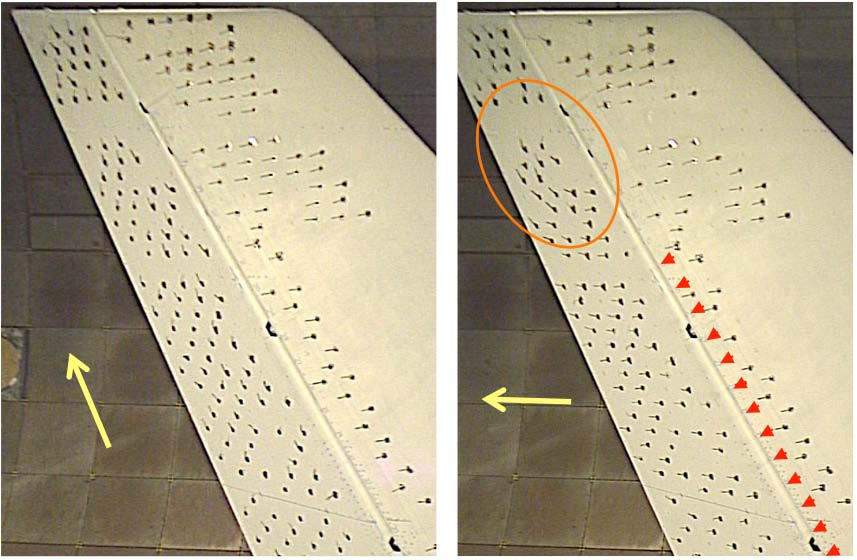

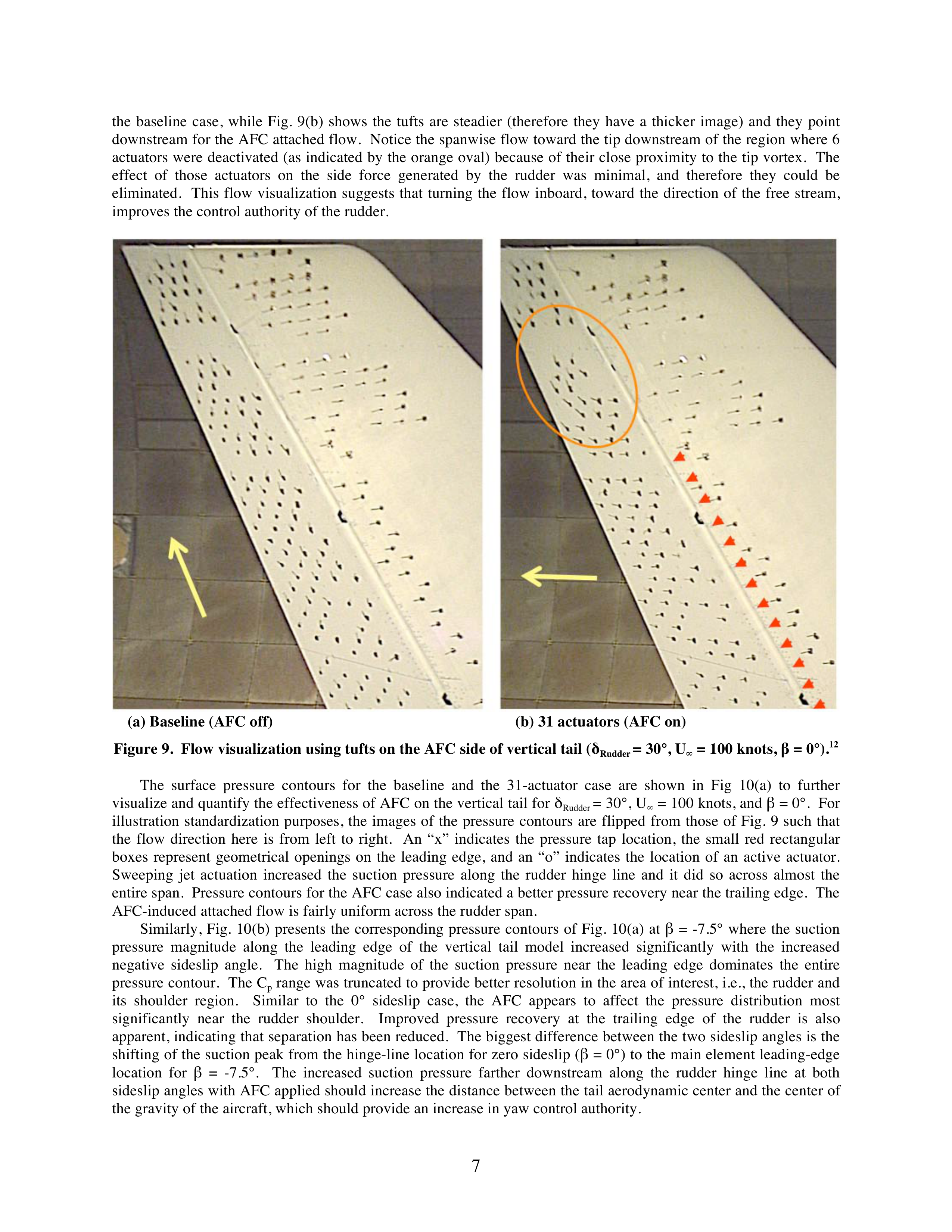

Tuft flow visualization confirmed the effectiveness of the selected AFC configuration. Figures 9(a) and 9(b)
show the tuft directions for (a) baseline and (b) when 31 actuators were on.
In Fig. 9, the yellow arrow indicates the
general flow direction on the rudder and the red triangles indicate the approximate location of sweeping jet nozzles
.
Figure 9(a) shows the tufts on the rudder pointing mostly upward toward the tip and they also rotated violently for
7
the baseline case, while Fig. 9(b) shows the tufts are steadier (therefore they have a thicker image) and they point
downstream for the AFC attached flow. Notice the spanwise flow toward the tip downstream of the region where 6
actuators were deactivated (as indicated by the orange oval) because of their close proximity to the tip vortex. The
effect of those actuators on the side force generated by the rudder was minimal, and therefore they could be
eliminated. This flow visualization suggests that turning the flow inboard, toward the direction of the free stream,
improves the control authority of the rudder.
(a) Baseline (AFC off)
(b) 31 actuators (AFC on)
Figure 9. Flow visualization using tufts on the AFC side of vertical tail (δ
Rudder
= 30°, U
∞
= 100 knots, β = 0°).
12
The surface pressure contours for the baseline and the 31-actuator case are shown in Fig 10(a) to further
visualize and quantify the effectiveness of AFC on the vertical tail for δ
Rudder
= 30°, U
∞
= 100 knots, and β = 0°. For
illustration standardization purposes, the images of the pressure contours are flipped from those of Fig. 9 such that
the flow direction here is from left to right. An “x” indicates the pressure tap location, the small red rectangular
boxes represent geometrical openings on the leading edge, and an “o” indicates the location of an active actuator.
Sweeping jet actuation increased the suction pressure along the rudder hinge line and it did so across almost the
entire span. Pressure contours for the AFC case also indicated a better pressure recovery near the trailing edge. The
AFC-induced attached flow is fairly uniform across the rudder span.
Similarly, Fig. 10(b) presents the corresponding pressure contours of Fig. 10(a) at β = -7.5° where the suction
pressure magnitude along the leading edge of the vertical tail model increased significantly with the increased
negative sideslip angle. The high magnitude of the suction pressure near the leading edge dominates the entire
pressure contour. The C
p
range was truncated to provide better resolution in the area of interest, i.e., the rudder and
its shoulder region. Similar to the 0° sideslip case, the AFC appears to affect the pressure distribution most
significantly near the rudder shoulder. Improved pressure recovery at the trailing edge of the rudder is also
apparent, indicating that separation has been reduced. The biggest difference between the two sideslip angles is the
shifting of the suction peak from the hinge-line location for zero sideslip (β = 0°) to the main element leading-edge
location for β = -7.5°. The increased suction pressure farther downstream along the rudder hinge line at both
sideslip angles with AFC applied should increase the distance between the tail aerodynamic center and the center of
the gravity of the aircraft, which should provide an increase in yaw control authority.
8
(a) β = 0°
(b) β = -7.5°

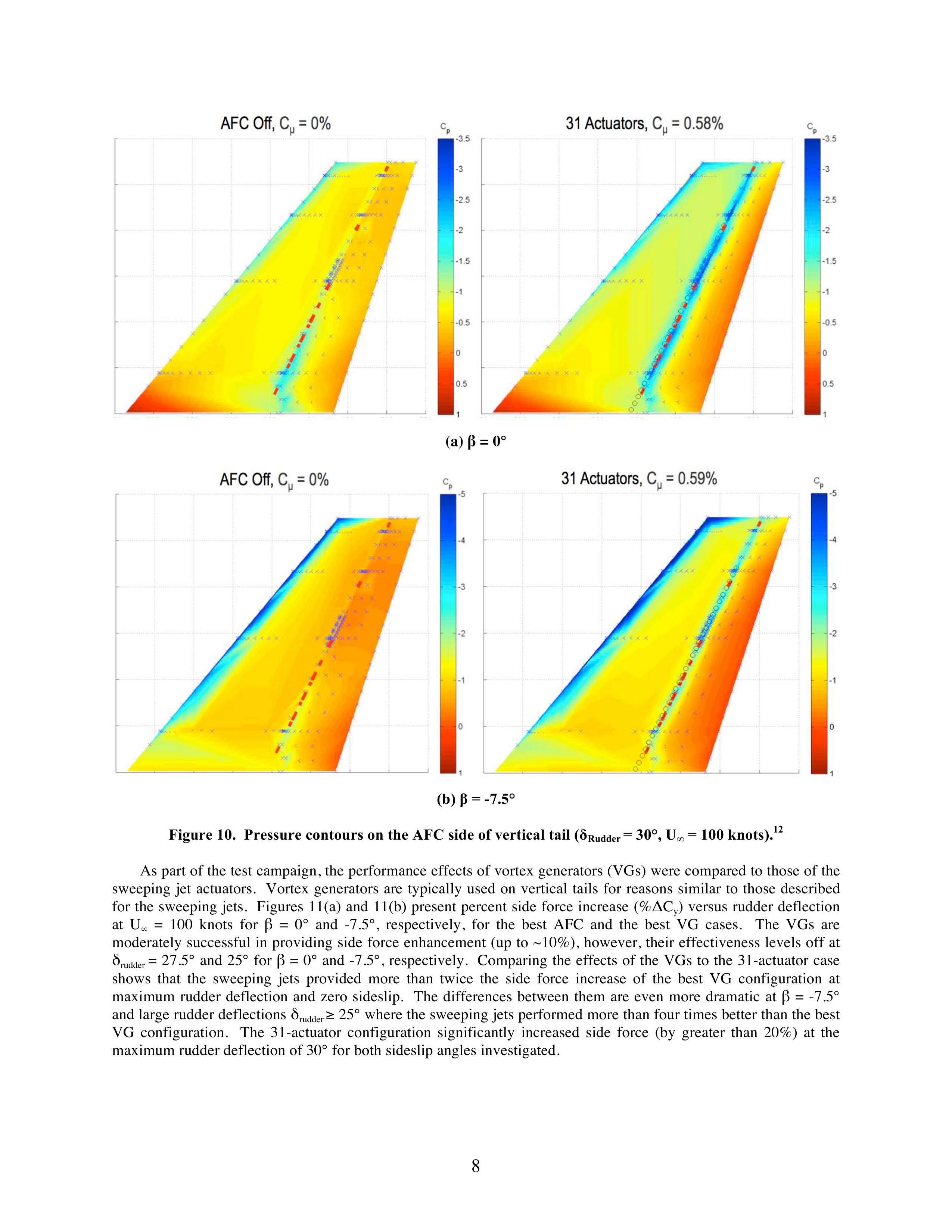

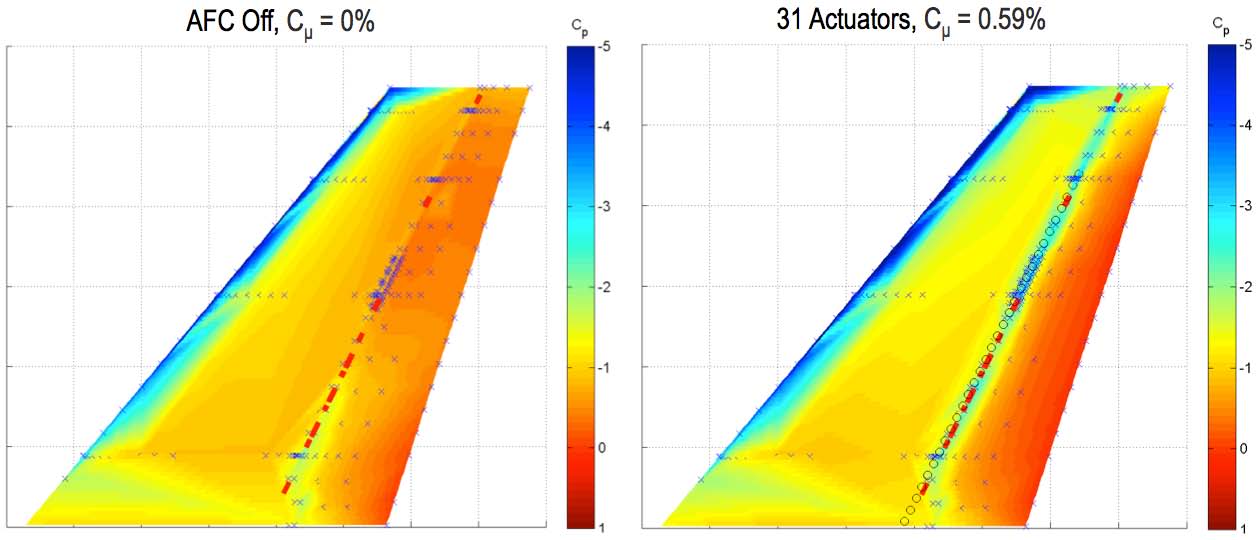

Figure 10. Pressure contours on the AFC side of vertical tail (δ
Rudder
= 30°, U
∞
= 100 knots).
12
As part of the test campaign, the performance effects of vortex generators (VGs) were compared to those of the
sweeping jet actuators. Vortex generators are typically used on vertical tails for reasons similar to those described
for the sweeping jets. Figures 11(a) and 11(b) present percent side force increase (%ΔC
y
) versus rudder deflection
at U
∞
= 100 knots for β = 0° and -7.5°, respectively, for the best AFC and the best VG cases. The VGs are
moderately successful in providing side force enhancement (up to ~10%), however, their effectiveness levels off at
δ
rudder
= 27.5° and 25° for β = 0° and -7.5°, respectively. Comparing the effects of the VGs to the 31-actuator case
shows that the sweeping jets provided more than twice the side force increase of the best VG configuration at
maximum rudder deflection and zero sideslip. The differences between them are even more dramatic at β = -7.5°
and large rudder deflections δ
rudder
≥ 25° where the sweeping jets performed more than four times better than the best
VG configuration. The 31-actuator configuration significantly increased side force (by greater than 20%) at the
maximum rudder deflection of 30° for both sideslip angles investigated.
9
(a) β = 0°
(b) β = -7.5°

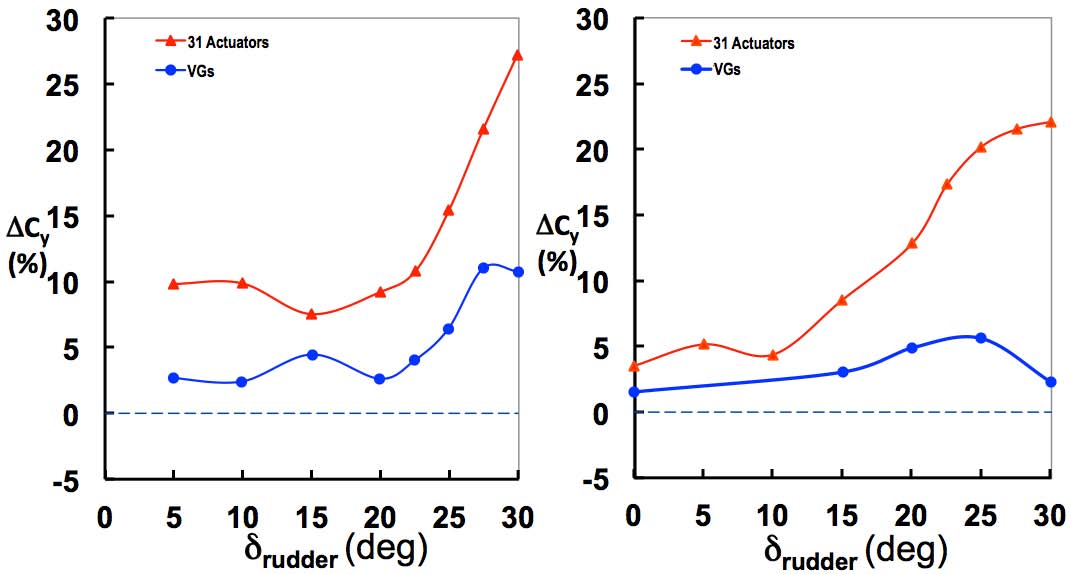

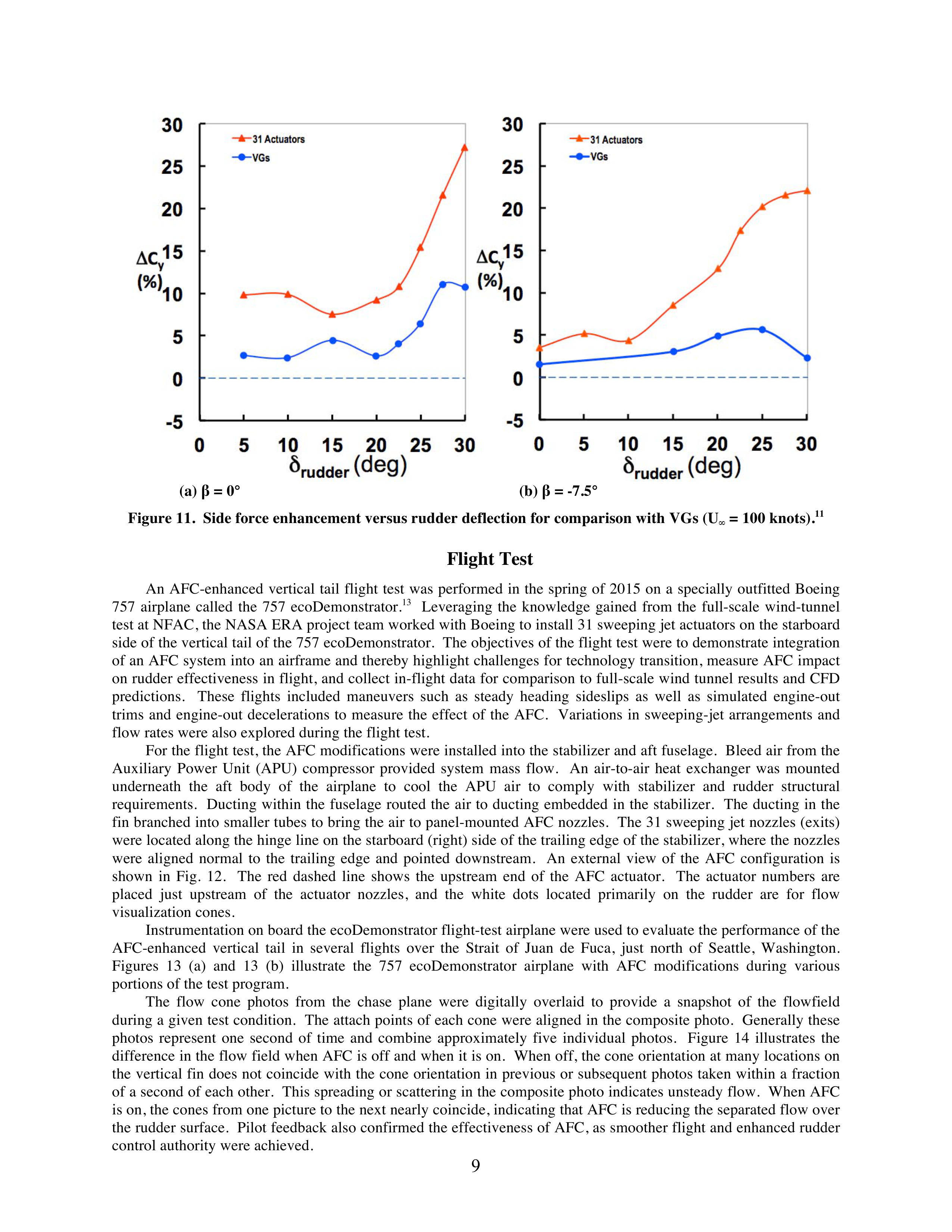

Figure 11. Side force enhancement versus rudder deflection for comparison with VGs (U
∞
= 100 knots).
11
Flight Test
An AFC-enhanced vertical tail flight test was performed in the spring of 2015 on a specially outfitted Boeing
757 airplane called the 757 ecoDemonstrator.
13
Leveraging the knowledge gained from the full-scale wind-tunnel
test at NFAC, the NASA ERA project team worked with Boeing to install 31 sweeping jet actuators on the starboard
side of the vertical tail of the 757 ecoDemonstrator. The objectives of the flight test were to demonstrate integration
of an AFC system into an airframe and thereby highlight challenges for technology transition, measure AFC impact
on rudder effectiveness in flight, and collect in-flight data for comparison to full-scale wind tunnel results and CFD
predictions. These flights included maneuvers such as steady heading sideslips as well as simulated engine-out
trims and engine-out decelerations to measure the effect of the AFC. Variations in sweeping-jet arrangements and
flow rates were also explored during the flight test.
For the flight test, the AFC modifications were installed into the stabilizer and aft fuselage. Bleed air from the
Auxiliary Power Unit (APU) compressor provided system mass flow. An air-to-air heat exchanger was mounted
underneath the aft body of the airplane to cool the APU air to comply with stabilizer and rudder structural
requirements. Ducting within the fuselage routed the air to ducting embedded in the stabilizer. The ducting in the
fin branched into smaller tubes to bring the air to panel-mounted AFC nozzles. The 31 sweeping jet nozzles (exits)
were located along the hinge line on the starboard (right) side of the trailing edge of the stabilizer, where the nozzles
were aligned normal to the trailing edge and pointed downstream. An external view of the AFC configuration is
shown in Fig. 12. The red dashed line shows the upstream end of the AFC actuator. The actuator numbers are
placed just upstream of the actuator nozzles, and the white dots located primarily on the rudder are for flow
visualization cones.
Instrumentation on board the ecoDemonstrator flight-test airplane were used to evaluate the performance of the
AFC-enhanced vertical tail in several flights over the Strait of Juan de Fuca, just north of Seattle, Washington.
Figures 13 (a) and 13 (b) illustrate the 757 ecoDemonstrator airplane with AFC modifications during various
portions of the test program.
The flow cone photos from the chase plane were digitally overlaid to provide a snapshot of the flowfield
during a given test condition. The attach points of each cone were aligned in the composite photo. Generally these
photos represent one second of time and combine approximately five individual photos. Figure 14 illustrates the
difference in the flow field when AFC is off and when it is on. When off, the cone orientation at many locations on
the vertical fin does not coincide with the cone orientation in previous or subsequent photos taken within a fraction
of a second of each other. This spreading or scattering in the composite photo indicates unsteady flow. When AFC
is on, the cones from one picture to the next nearly coincide, indicating that AFC is reducing the separated flow over
the rudder surface. Pilot feedback also confirmed the effectiveness of AFC, as smoother flight and enhanced rudder
control authority were achieved.
10

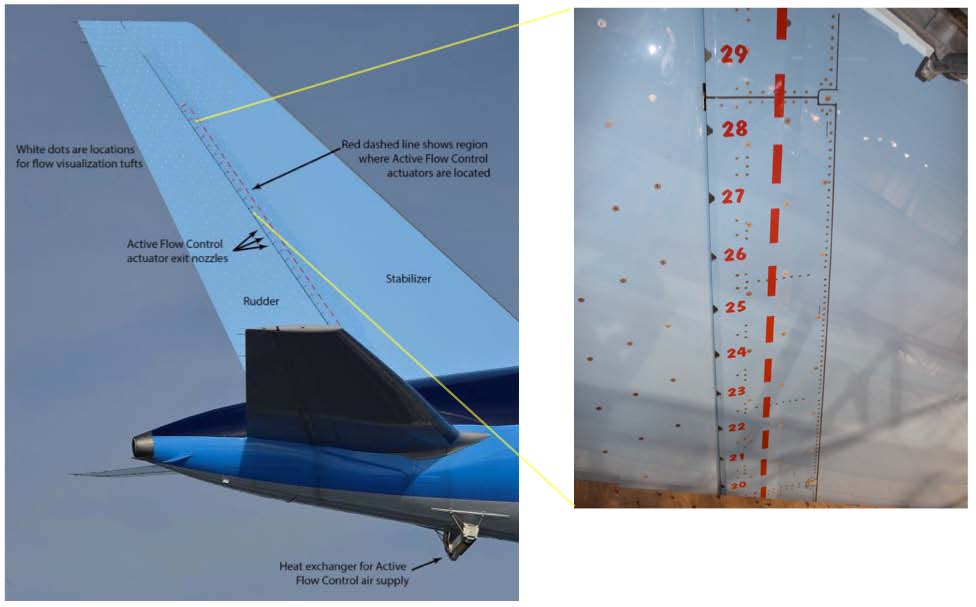

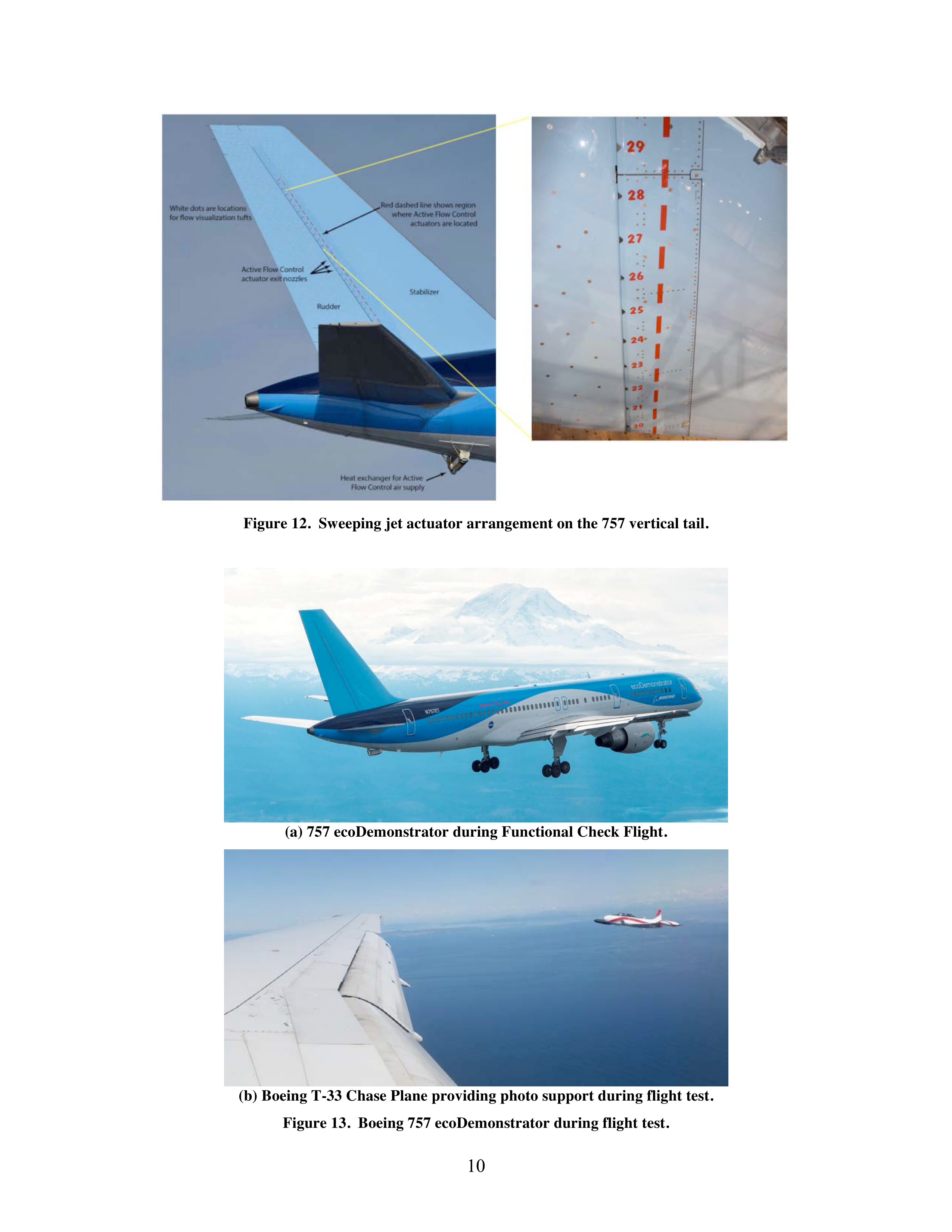

Figure 12. Sweeping jet actuator arrangement on the 757 vertical tail.
(a) 757 ecoDemonstrator during Functional Check Flight.
(b) Boeing T-33 Chase Plane providing photo support during flight test.
Figure 13. Boeing 757 ecoDemonstrator during flight test.
11

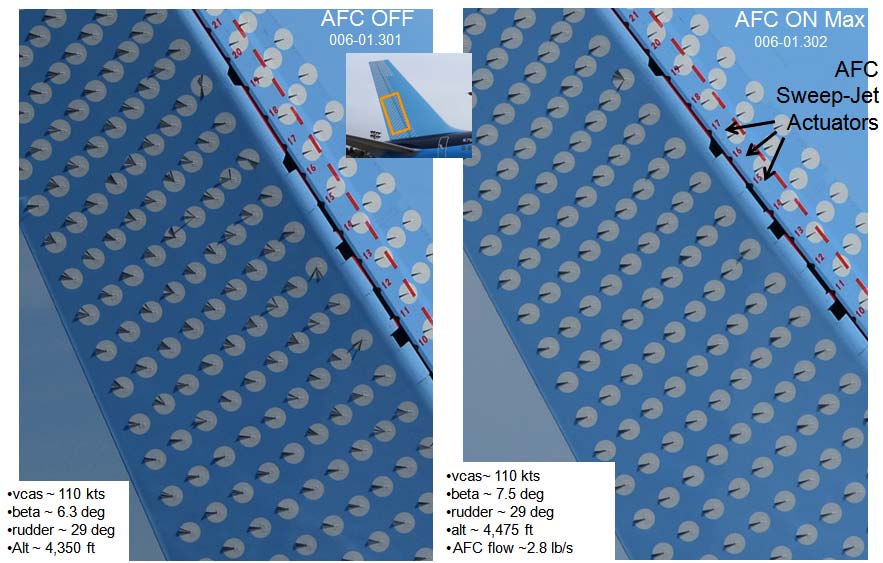

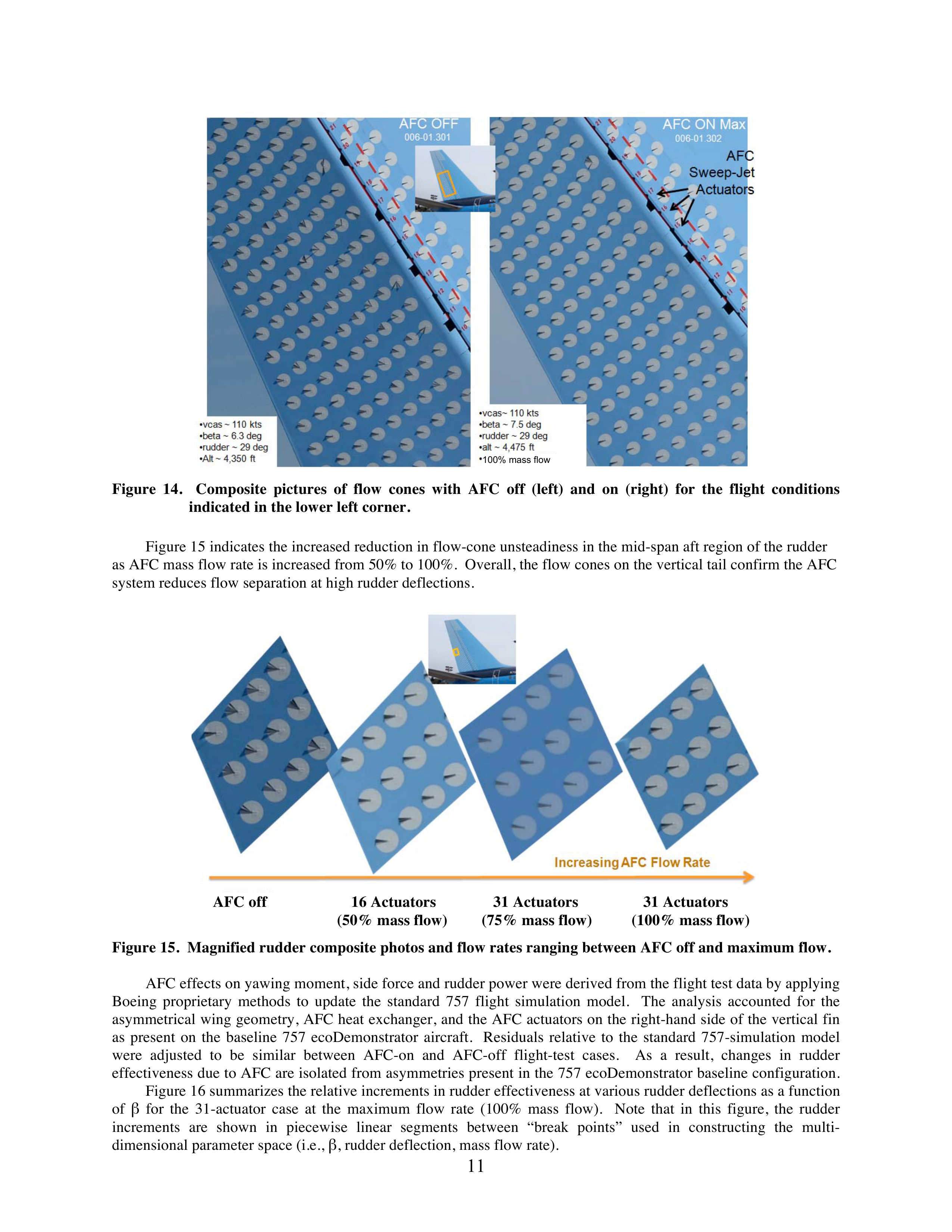

Figure 14. Composite pictures of flow cones with AFC off (left) and on (right) for the flight conditions
indicated in the lower left corner.
Figure 15 indicates the increased reduction in flow-cone unsteadiness in the mid-span aft region of the rudder
as AFC mass flow rate is increased from 50% to 100%. Overall, the flow cones on the vertical tail confirm the AFC
system reduces flow separation at high rudder deflections.
AFC off
16 Actuators
31 Actuators
31 Actuators
(50% mass flow)
(75% mass flow)
(100% mass flow)

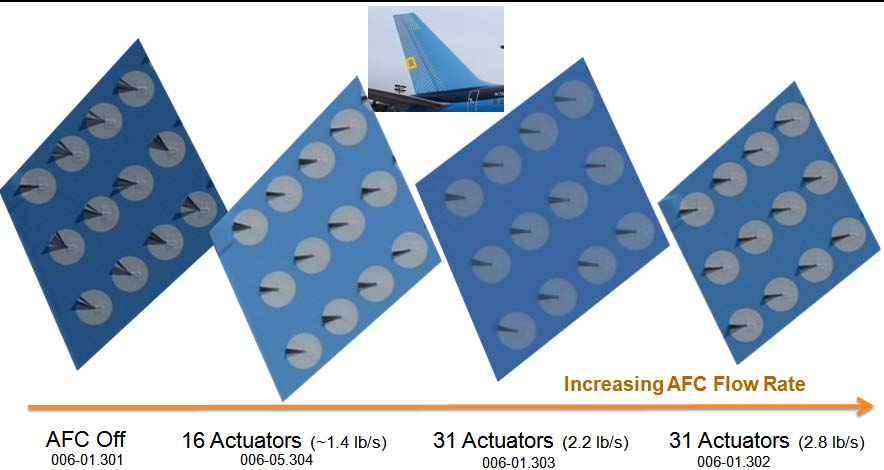

Figure 15. Magnified rudder composite photos and flow rates ranging between AFC off and maximum flow.
AFC effects on yawing moment, side force and rudder power were derived from the flight test data by applying
Boeing proprietary methods to update the standard 757 flight simulation model. The analysis accounted for the
asymmetrical wing geometry, AFC heat exchanger, and the AFC actuators on the right-hand side of the vertical fin
as present on the baseline 757 ecoDemonstrator aircraft. Residuals relative to the standard 757-simulation model
were adjusted to be similar between AFC-on and AFC-off flight-test cases. As a result, changes in rudder
effectiveness due to AFC are isolated from asymmetries present in the 757 ecoDemonstrator baseline configuration.
Figure 16 summarizes the relative increments in rudder effectiveness at various rudder deflections as a function
of β for the 31-actuator case at the maximum flow rate (100% mass flow). Note that in this figure, the rudder
increments are shown in piecewise linear segments between “break points” used in constructing the multi-
dimensional parameter space (i.e., β, rudder deflection, mass flow rate).
100% mass flow
12

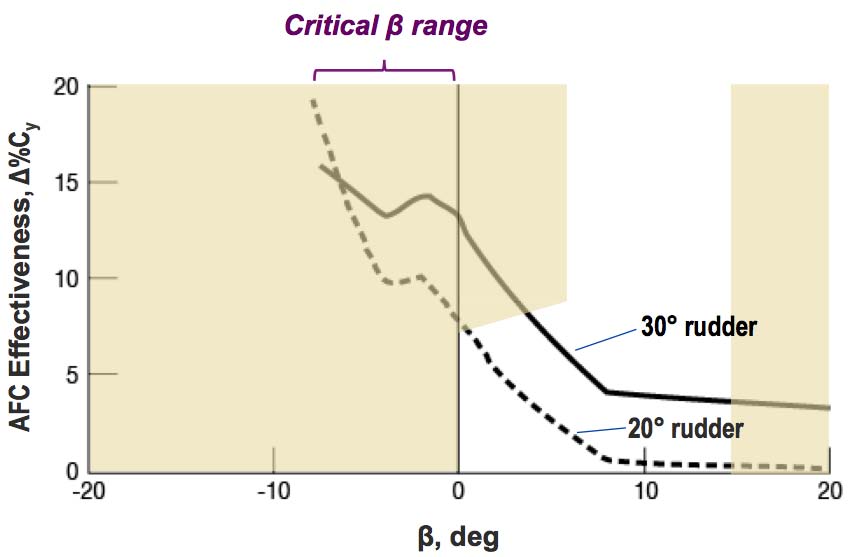

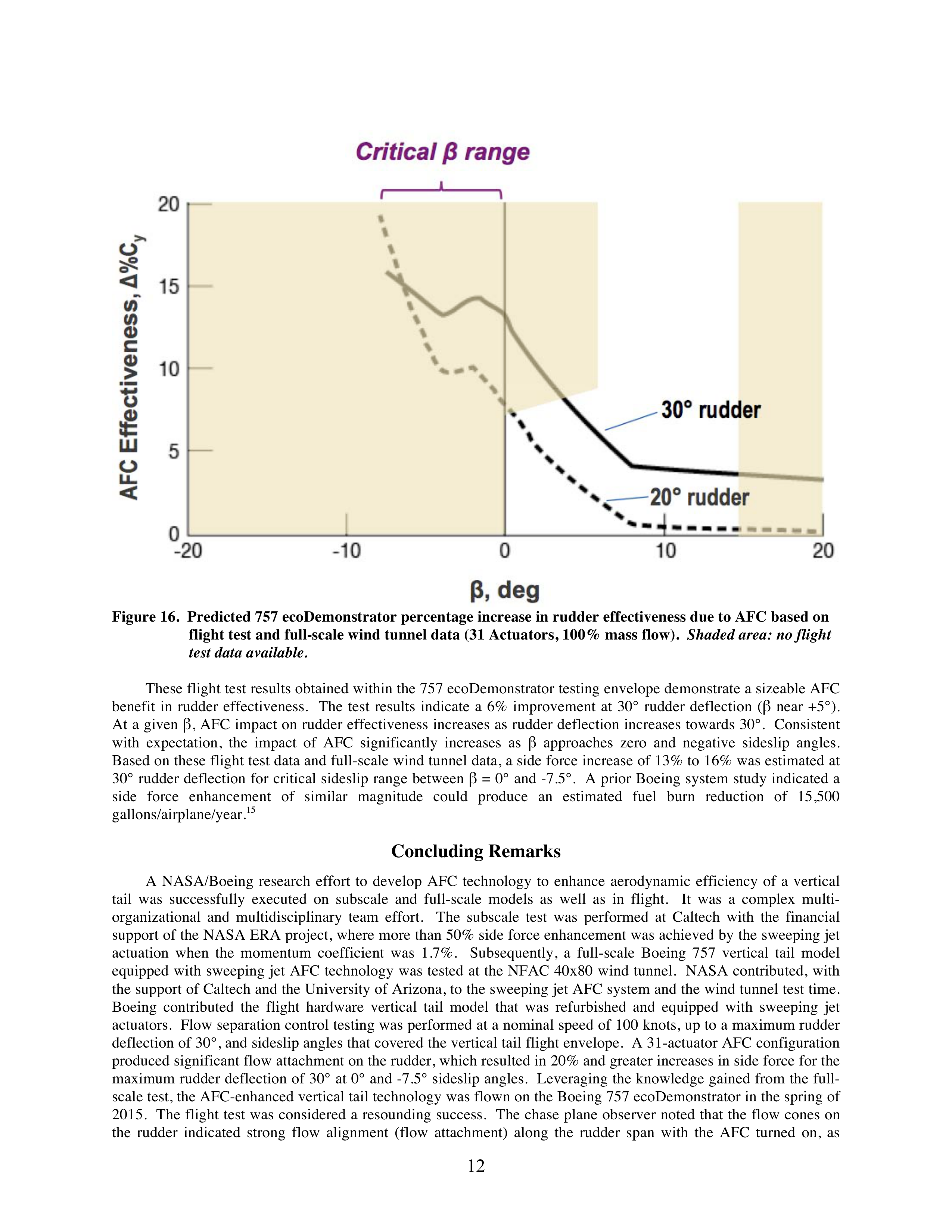

Figure 16. Predicted 757 ecoDemonstrator percentage increase in rudder effectiveness due to AFC based on
flight test and full-scale wind tunnel data (31 Actuators, 100% mass flow).
Shaded area: no flight
test data available.
These flight test results obtained within the 757 ecoDemonstrator testing envelope demonstrate a sizeable AFC
benefit in rudder effectiveness. The test results indicate a 6% improvement at 30° rudder deflection (β near +5°).
At a given β, AFC impact on rudder effectiveness increases as rudder deflection increases towards 30°. Consistent
with expectation, the impact of AFC significantly increases as β approaches zero and negative sideslip angles.
Based on these flight test data and full-scale wind tunnel data, a side force increase of 13% to 16% was estimated at
30° rudder deflection for critical sideslip range between β = 0° and -7.5°. A prior Boeing system study indicated a
side force enhancement of similar magnitude could produce an estimated fuel burn reduction of 15,500
gallons/airplane/year.
15
Concluding Remarks
A NASA/Boeing research effort to develop AFC technology to enhance aerodynamic efficiency of a vertical
tail was successfully executed on subscale and full-scale models as well as in flight. It was a complex multi-
organizational and multidisciplinary team effort. The subscale test was performed at Caltech with the financial
support of the NASA ERA project, where more than 50% side force enhancement was achieved by the sweeping jet
actuation when the momentum coefficient was 1.7%. Subsequently, a full-scale Boeing 757 vertical tail model
equipped with sweeping jet AFC technology was tested at the NFAC 40x80 wind tunnel. NASA contributed, with
the support of Caltech and the University of Arizona, to the sweeping jet AFC system and the wind tunnel test time.
Boeing contributed the flight hardware vertical tail model that was refurbished and equipped with sweeping jet
actuators. Flow separation control testing was performed at a nominal speed of 100 knots, up to a maximum rudder
deflection of 30°, and sideslip angles that covered the vertical tail flight envelope. A 31-actuator AFC configuration
produced significant flow attachment on the rudder, which resulted in 20% and greater increases in side force for the
maximum rudder deflection of 30° at 0° and -7.5° sideslip angles. Leveraging the knowledge gained from the full-
scale test, the AFC-enhanced vertical tail technology was flown on the Boeing 757 ecoDemonstrator in the spring of
2015. The flight test was considered a resounding success. The chase plane observer noted that the flow cones on
the rudder indicated strong flow alignment (flow attachment) along the rudder span with the AFC turned on, as
13
opposed to massive flow separation observed for AFC off. Pilot feedback and an initial analysis of the flight data
confirmed that the AFC is effective, as smoother flight and enhanced rudder control authority were achieved. A side
force increase of 13% to 16% was estimated at 30° rudder deflection for critical sideslip range between β = 0° and -
7.5° with the activation of AFC.
Acknowledgments
This multi-organizational and multidisciplinary teaming effort involved many people who provided valuable
contributions through their detailed work and/or expert guidance. The contributors have come from within the
NASA/Boeing team and their partners. The NASA/Boeing collaboration was executed through three Space Act
Agreements for subscale test at Caltech, full-scale test at NFAC, and flight test (Annex 2 to SAA1-1018, Annex 8
and Annex 9 to SAA1-1155, respectively). The NASA ERA project sponsored the sweeping jet AFC technology
via Caltech (TEAMS Contracts NNL10AM26T and NNL12AA09C) and the University of Arizona (direct
subcontract). The ERA project also sponsored the wind tunnel test at NFAC (NIPR# NNL12AA13T) and the flight
test (SMAAART Contract NAS1-NNL10AA05B, Tasks NNL13AC06T and NNL14AA57T). Boeing also
sponsored the initial synthetic jet AFC vertical tail research at RPI. The authors would like to thank all those who
involved for their great support during the course of this technology development.
References
1
Collier, F. S., Thomas, R., Nickol, C. A., Lee, Chi-Ming, and Tong, M., “Environmentally Responsible
Aviation – Real Solutions for Environmental Challenges Facing Aviation,” 27th International Congress of the
Aeronautical Sciences, Paper No. 802, Nice, France, September 19-24, 2010.
2
Bezos-O’Conner, G. M., Mangelsdorf, M. F., Maliska, H. A., Washburn, A. E., and Wahls, R. A., “Fuel
Efficiencies Through Airframe Improvements,” AIAA 2011-3530, 29th AIAA Applied Aerodynamics Conference,
Honolulu, HI, June 27-30, 2011.
3
Cattafesta III, L. N. and Sheplak, M., “Actuators for Active Flow Control,”
Annual Review of Fluid
Mechanics
, Vol. 43, Issue 1, August 2010, pp. 247-272.
4
Rathay, N., Boucher, M., Amitay, M., and Whalen, E., “Performance Enhancement of a Vertical Stabilizer
using Synthetic Jet Actuators: No Sideslip,” AIAA 2012-0071, 50th AIAA Aerospace Sciences Meeting, Nashville,
TN, January 9-12, 2012.
5
Rathay, N., Boucher, M., Amitay, M., and Whalen, E., “Performance Enhancement of a Vertical Stabilizer
using Synthetic Jet Actuators: Non-zero Sideslip,” AIAA 2012-2657
,
6th AIAA Flow Control Conference, New
Orleans, LA, June 25-28, 2012.
6
Rathay, N., Boucher, M., Amitay, M., and Whalen, E., “Parametric Study of Synthetic-Jet-Based Control for
Performance Enhancement of a Vertical Tail,”
AIAA Journal
, DOI: 10.2514/1.J052887, May 2014.
7
Raman, G. and Raghu, S., “Cavity Resonance Suppression Using Miniature Fluidic Oscillators”,
AIAA
Journal
, Vol. 42, No. 12, December 2004, pp. 2608-2611.
8
Seele, R., Graff, E., Gharib, M., Taubert, L., Lin, J., and Wygnanski, I., “Improving Rudder Effectiveness
with Sweeping Jet Actuators,” AIAA 2012-3244,
6th AIAA Flow Control Conference, New Orleans, LA, June 25-
28, 2012.
9
Seele, R., Graff, E., Lin, J., and Wygnanski, I., “Performance Enhancement of a Vertical Tail Model with
Sweeping Jet Actuators,” AIAA 2013-0411, 51st AIAA Aerospace Sciences Meeting, Grapevine, Texas, January 7-
10, 2013.
10
Graff, E., Seele, R., Lin, J., and Wygnanski, I., “Sweeping Jet Actuators – A New Design Tool for High Lift
Generation,” NATO Workshop on Innovative Control Effectors for Military Vehicles (AVT-215), Stockholm,
Sweden, May 20-22, 2013.
11
Whalen, E. A., Lacy, D., Lin, J. C., Andino, M. Y., Washburn, A. E., Graff, E. C., and Wygnanski, I.,
“Performance Enhancement of a Full-Scale Vertical Tail Model Equipped with Active Flow Control,” AIAA Paper
No. 2015-0784, 53
rd
AIAA Aerospace Sciences Meeting, Kissimmee, FL,
January 5-9, 2015.
12
Andino, M. Y., Lin, J. C., Washburn, A. E., Whalen, E. A., Graff, E. C., and Wygnanski, I., “Flow Separation
Control on a Full-Scale Vertical Tail Model using Sweeping jet Actuators,” AIAA Paper No. 2015-0785, 53
rd
AIAA
Aerospace Sciences Meeting, Kissimmee, FL,
January 5-9, 2015.
13
http://www.engadget.com/2015/04/03/nasa-boeing-era-eco-friendly-planes/
14
http://rotorcraft.arc.nasa.gov/Research/facilities/windtunnels.html
15
Mooney, H. P., Brandt, J. B., Lacy, D. S., and Whalen, E. A., “AFC-Enabled Vertical Tail System Integration
Study,” NASA/CD-2014-218168, March 2014.
